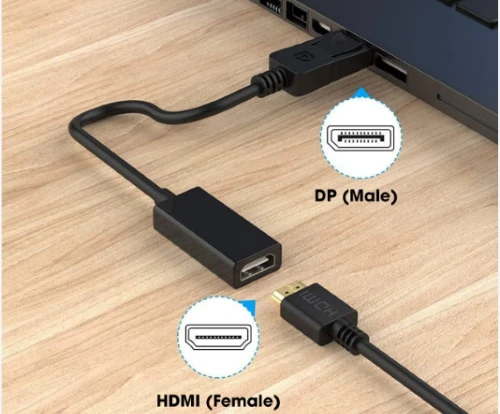

Choosing the Right Converter to HDMI Cable: Technical Insights & OEM Manufacturing Excellence

Modern display setups rely heavily on stable signal translation across legacy and next-generation video protocols. Selecting the proper converter to HDMI cable requires a detailed understanding of hardware protocols, active IC processing, and manufacturing quality to avoid signal degradation, flickering, or dropped frames.

Understanding Converter to HDMI Cables: How They Work

Digital vs. Analog Signal Conversion (DisplayPort, USB-C, VGA to HDMI)

Modern converter to HDMI cables use specialized bridge ICs to translate non-HDMI video streams into TMDS or FRL signals required by HDMI displays. Signal conversion fundamentally depends on whether the source interface outputs native digital packets or legacy analog voltages.

Converting digital interfaces like DisplayPort or USB-C (via VESA DisplayPort Alternate Mode) to HDMI involves re-packetizing data and re-encoding sync clocks without altering the underlying digital payload. DisplayPort utilizes a micro-packet architecture running over low-voltage differential signaling (LVDS), whereas HDMI relies on Transition Minimized Differential Signaling (TMDS) or Fixed Rate Link (FRL) in HDMI 2.1.

In contrast, converting analog VGA signals to HDMI requires a high-speed Analog-to-Digital Converter (ADC) chip to sample 0.7V peak-to-peak RGB voltage waveforms, generate precise pixel clock timing via Phase-Locked Loops (PLL), and interleave analog audio into the digital HDMI bitstream.

Active vs. Passive Converters: When Do You Need a Powered Chipset?

Passive converter cables rely on dual-mode source ports to output HDMI signals natively, while active converter cables integrate dedicated processing chipsets to actively translate protocols regardless of source port capability. The distinction determines hardware compatibility and maximum achievable resolution.

Passive adapters (often labeled DP++) work exclusively when the source graphics processor (GPU) detects an HDMI sink via Display Data Channel (DDC) pins and switches its internal PHY output to TMDS signaling. Passive conversion is generally capped at HDMI 1.4 or 2.0 specs and fails when connecting more than two displays on AMD Eyefinity or Nvidia Surround configurations due to clock generator limits on the GPU.

Active converter to HDMI cables include an onboard level shifter and protocol bridge IC (such as Parade, MegaChips, or Synaptics solutions) that draws 5V power from the host port or external USB input. These active ICs independently construct the TMDS/FRL differential clock and data lanes, making them mandatory for multi-monitor setups, long cable runs, or non-DP++ sources.

Key Technical Specs: Bandwidth, Refresh Rates (4K@60Hz, 8K), and HDCP Protocols

Selecting a high-performance converter cable requires matching protocol bandwidth, frame rate capabilities, and content protection standards across the entire signal chain. Mismatched specs cause resolution downscaling, black screens, or handshaking failures.

HDMI performance scales directly with bandwidth: HDMI 1.4 supports 10.2 Gbps (4K@30Hz), HDMI 2.0 supports 18.0 Gbps (4K@60Hz with 4:4:4 chroma), and HDMI 2.1 enables 48 Gbps (8K@60Hz or 4K@120Hz). Active bridge chips must process these data rates without introducing packet jitter or bit error rate (BER) spikes.

Furthermore, High-bandwidth Digital Content Protection (HDCP) compliance is mandatory for media playback; HDCP 1.4 applies to 1080p content, while HDCP 2.2 and HDCP 2.3 protect 4K/8K media streams. A conversion cable must transparently pass or translate HDCP keys between source and sink to prevent playback blocking.

Commercial & Industrial Applications and Key Buying Criteria

Consumer Use Cases: Gaming, Workstations, and Multi-Monitor Expansion

Consumer deployment of converter to HDMI cables centers on expanding desktop real estate and connecting high-refresh-rate gaming devices to modern televisions or monitors. Achieving flicker-free visual output requires stable signal handshake protocols.

Desktop workstations utilizing GPUs with multiple DisplayPort outputs often require active DP to HDMI converters to drive secondary HDMI monitors. In gaming, converting Type-C or DP to HDMI 2.1 demands support for Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), and AMD FreeSync passthrough.

Substandard cables with poor timing controllers introduce frame stutter, elevated input lag, or periodic screen blackouts caused by loss of clock synchronization during dynamic frame rate transitions.

Enterprise & Industrial Applications: AV Engineering, Digital Signage, and Control Rooms

Industrial and commercial AV environments demand conversion hardware capable of continuous 24/7 operation under heavy electromagnetic interference and physical strain. System reliability outweighs consumer aesthetic preferences.

Control room video walls, flight information display systems (FIDS), and medical imaging workstations rely on long-haul converter to HDMI assemblies that preserve signal integrity over 10 to 30 meters. Industrial installations often deploy active conversion embedded inside wall plates or rack units.

These setups require robust Electrostatic Discharge (ESD) protection-typically ±8kV contact and ±15kV air discharge-to prevent system crashes caused by static build-up in high-traffic commercial spaces.

Critical Buying Criteria: Shielding, Chipsets, Connector Plating, and Cable Flexibility

Evaluating a converter to HDMI cable requires inspecting conductor material, shielding architecture, connector metallurgy, and physical jacket durability. Cheap construction choices compromise long-term signal delivery.

For optimal performance, prioritize the following hardware attributes:

Conductor Gauge: 28 AWG to 24 AWG oxygen-free copper (OFC) cores minimize attenuation across extended distances compared to copper-clad steel (CCS).

Multi-Layer Shielding: Individual twisted pairs wrapped in aluminum foil, plus an outer 85%+ tinned copper braid, shield against electromagnetic interference (EMI) and radio frequency interference (RFI).

Connector Plating: 24K gold-plated connectors resist oxidation and maintain low contact resistance through thousands of mating cycles.

Strain Relief & Jacket: An integrated injection-molded strain relief boot paired with a flexible PVC or braided nylon jacket prevents internal conductor fracture at bend radii.

Inside a High-Quality Converter Cable: Engineering & Signal Integrity

Premium Copper Conductors, EMI/RFI Shielding, and Signal Attenuation Control

Superior signal transmission in converter cables relies on low-impedance conductor topology and dense multi-tier shielding to control insertion loss and crosstalk. Precision wire construction directly dictates bit error rate performance.

High-frequency differential signaling requires tight characteristic impedance matching-typically 100Ω±10Ω across differential pairs. Deviations in conductor geometry cause signal reflections, measured as high Return Loss on a Vector Network Analyzer (VNA).

By utilizing precision-extruded physical foamed polyethylene (FPE) insulation, high-tier cables maintain uniform spacing between differential wires, holding eye-diagram openings clean and wide even over extended lengths.

High-Performance IC Chipsets for Low-Latency, High-Stability Transmission

The integrated circuit board housed inside the cable shell serves as the processing core responsible for protocol translation, signal equalization, and clock recovery. Chipset selection governs thermal stability and system compatibility.

Top-tier active converter cables integrate advanced System-on-Chip (SoC) solutions featuring integrated adaptive equalization (EQ) circuits. These circuits automatically amplify high-frequency signal components attenuated by cable length.

High-grade ICs operate with minimal thermal dissipation, keeping operating temperatures under 45∘C to prevent thermal throttling, visual artifacts, or memory leak crashes during prolonged high-bandwidth 4K/8K video transmission.

Molded Strain Relief and Durable Housing for Long-Term Reliability

Mechanical shell construction protects the fragile Printed Circuit Board Assembly (PCBA) and solder joints from environmental degradation and mechanical shock. Dual-layer molding techniques offer superior isolation.

Premium converters utilize an inner copper foil shielding cage soldered 360 degrees around the PCB, which is then encased in a rigid inner PVC mold before receiving its final zinc-alloy or aluminum shell housing.

This structural sandwich prevents flexural stress on micro-solder joints when the cable is bent or pulled, ensuring mechanical longevity and persistent EMI containment at the connector junction.

Partnering with a Professional Manufacturer: SZAOST Capability Overview

Precision Manufacturing & Advanced Automated Testing Infrastructure

Delivering consistent signal integrity across high-volume production runs requires fully automated manufacturing lines and rigorous laboratory validation. SZAOST integrates advanced automation at every stage of cable assembly.

Production facilities utilize automated high-precision wire stripping and pulse laser welding machines to secure ultra-fine wire conductors directly onto PCBA pads with zero thermal damage.

Every completed converter cable undergoes 100% automated parametric testing on high-frequency eye-diagram analyzers and Quantum Data 780/882 HDMI compliance testers, verifying TMDS clock integrity, HDCP handshake execution, and zero frame loss prior to packaging.

Comprehensive OEM/ODM Customization: Cable Lengths, Materials, and Branding

B2B clients require tailored cable hardware designed for specific market segments, industrial enclosures, or retail brand identities. SZAOST provides complete end-to-end OEM/ODM manufacturing customization.

Engineering support spans from PCB schematic modification and custom IC firmware tailoring to mechanical shell industrial design. Key customization options include:

Custom Form Factors: Slimline connectors, right-angle 90∘ housing, and screw-locking panel-mount designs for industrial machinery.

Bespoke Materials: TPE halogen-free jackets for medical applications, ultra-flexible silicone for portable devices, or metallic zinc-alloy housings for premium retail brands.

Branding & Packaging: Laser-etched logos, custom color-matching (Pantone), specialized cable lengths (0.1m dongles to 15m active runs), and retail-ready eco-packaging.

Strict Quality Assurance & International Standard Certifications (CE, FCC, RoHS)

Global supply chain compliance demands strict adherence to international electrical safety, environmental, and interoperability standards. SZAOST maintains rigorous quality control frameworks across all production lines.

Operating under ISO 9001:2015 quality management systems, manufacturing workflows enforce strict incoming material inspection (IQC), in-process quality control (IPQC), and final quality assurance (FQA).

All converter to HDMI cables fully comply with CE, FCC, RoHS, and REACH directives, ensuring seamless market access and reliable field performance for global distributors, system integrators, and OEM brand partners.

FAQ about Converter to HDMI Cable


Q1: What is the main difference between a passive and an active converter to HDMI cable?

A: A passive converter cable relies on the source device (such as a DP++ port) to output native HDMI signals. In contrast, an active converter to HDMI cable features a built-in IC chipset that actively translates protocol signals. Active cables are required for non-DP++ sources, multi-monitor setups, and high-resolution/high-refresh-rate transmissions (such as 4K@60Hz or 8K).

Q2: Why does my screen flicker or lose signal when using a converter cable?

A: Screen flickering or signal dropouts are usually caused by inadequate signal bandwidth, poor EMI shielding, uncertified IC chipsets, or excessive cable length causing voltage attenuation. Choosing a high-quality converter cable engineered with 100% copper conductors, multi-layer shielding, and premium active chips ensures stable, flicker-free transmission.

Q3: Can a USB-C to HDMI converter cable support 4K@60Hz and HDR?

A: Yes, provided that the source device supports USB-C DisplayPort Alternate Mode (DP Alt Mode) with sufficient bandwidth and the cable incorporates a high-performance active conversion chip that supports HDMI 2.0 or HDMI 2.1 specifications.

Q4: Does a converter to HDMI cable carry audio signals along with video?

A: Yes. Modern digital formats like DisplayPort and USB-C naturally carry multi-channel digital audio. For analog sources like VGA, high-grade VGA-to-HDMI converter cables include an integrated audio bridge (via a 3.5mm jack or USB) to digitize and interleave audio into the HDMI signal stream.

Q5: What OEM/ODM customization options does SZAOST offer for bulk converter cable orders?

A: SZAOST provides complete OEM/ODM solutions, including custom cable lengths, housing materials (zinc-alloy, aluminum, or TPE), right-angle connectors, custom firmware tuning for specialized ICs, laser-engraved logos, and retail packaging designed to meet specific market requirements.

Conclusion

Sourcing the right converter to HDMI cable requires balancing interface protocols, active IC processing capabilities, and physical build standards. Whether deploying multi-monitor enterprise workstations or high-bandwidth digital display systems, choosing engineering-validated hardware prevents signal dropouts and handshaking failures.

By integrating high-precision laser welding, automated eye-diagram testing, and flexible OEM/ODM manufacturing options, SZAOST provides global partners with high-reliability signal conversion solutions. Contact the SZAOST engineering team today to discuss custom specifications, request production samples, or receive a competitive factory-direct quotation for bulk OEM orders.
