Product Basic Information

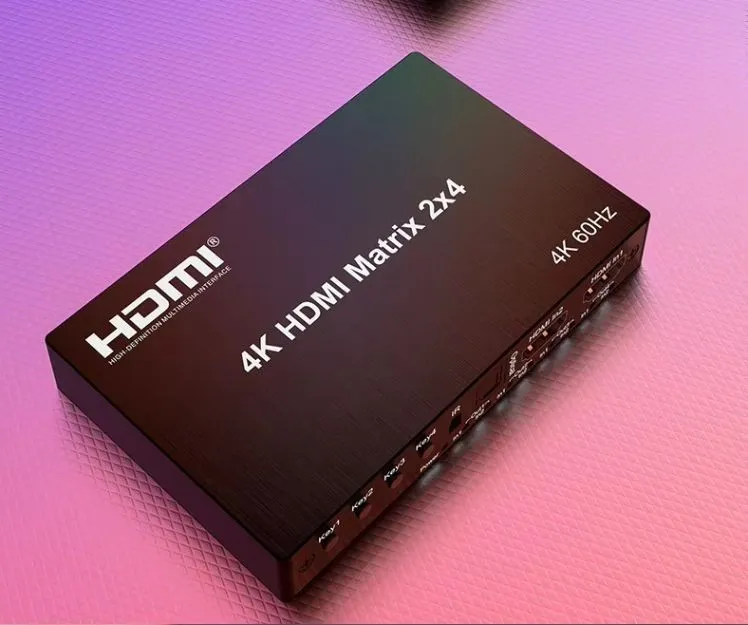

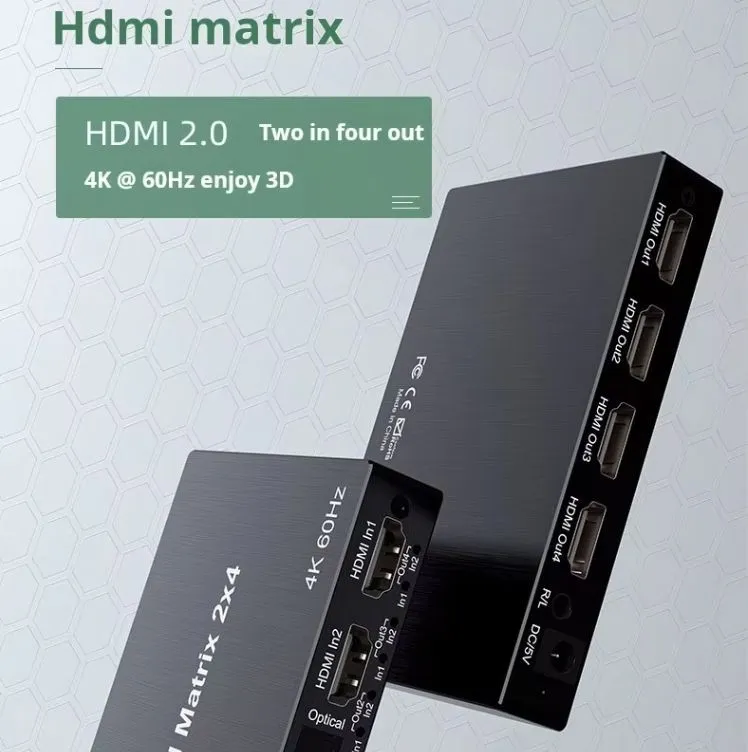

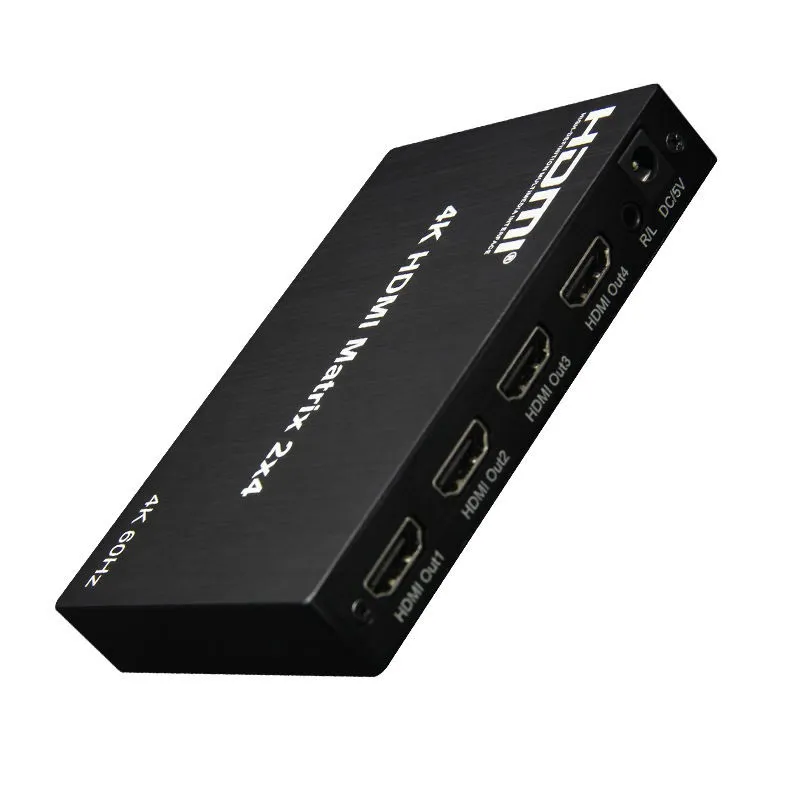

The V2.0 HDMI Matrix 2x4 is a versatile 2-input to 4-output HDMI matrix switch that allows you to connect two HDMI source devices and distribute their signals to up to four HDMI displays simultaneously. Whether you need to switch between sources or mirror the same content across multiple screens, this compact unit delivers reliable performance with support for 4K@60Hz resolution.
It features HDMI 2.0 compatibility and includes convenient audio extraction via the HDMI OUT 1 port, supporting both optical (TOSLINK) and 3.5mm stereo headphone outputs. This makes it ideal for setups requiring separate audio routing to sound systems or headphones.
Key applications include:
- Home theaters and multi-room entertainment systems
- Conference rooms and corporate presentations
- Educational and training environments
- Digital signage and information distribution
- Data centers or control rooms where space, noise, and security are concerns
Product Specifications Parameters
|
Parameter |
Specification |
|
HDMI Version |
HDMI 2.0 |
|
HDMI Resolution |
Up to 3840x2160@60Hz (4K@60Hz) |
|
Video Color Depth |
8/10/12 bit deep color |
|
Audio Formats |
LPCM, Dolby, DTS 5.1 channel |
|
Max Bandwidth |
600MHz |
|
Max Baud Rate |
3x6Gbps |
|
Input Ports |
2 × HDMI |
|
Output Ports |
4 × HDMI |
|
Input Cable Distance |
4K@30Hz ≤15m (AWG26); 4K@60Hz ≤5m (HDMI 2.0) |
|
Output Cable Distance |
4K@30Hz ≤15m (AWG26); 4K@60Hz ≤5m (HDMI 2.0) |
|
Power Adapter |
Input: AC 100-240V (50/60Hz); Output: DC 5V/1A |
|
Max Working Current |
750mA |
|
Operating Temperature |
-15℃ to +45℃ |
|
Operating Humidity |
5 to 90% RH (No Condensation) |
|
Dimensions (L x W x H) |
122 × 80 × 19 mm |
|
Weight |
176g |
Product Features
High-Resolution 4K Support: Delivers crisp, vibrant 4K@60Hz video with 8/10/12-bit deep color for lifelike image quality on all connected displays.
Flexible Audio Extraction: Via HDMI OUT 1, enjoy simultaneous 3.5mm stereo headphone and optical digital audio output. Switch between 5.1 and 2.1 channel audio by pressing the "Select" button for about 5 seconds.

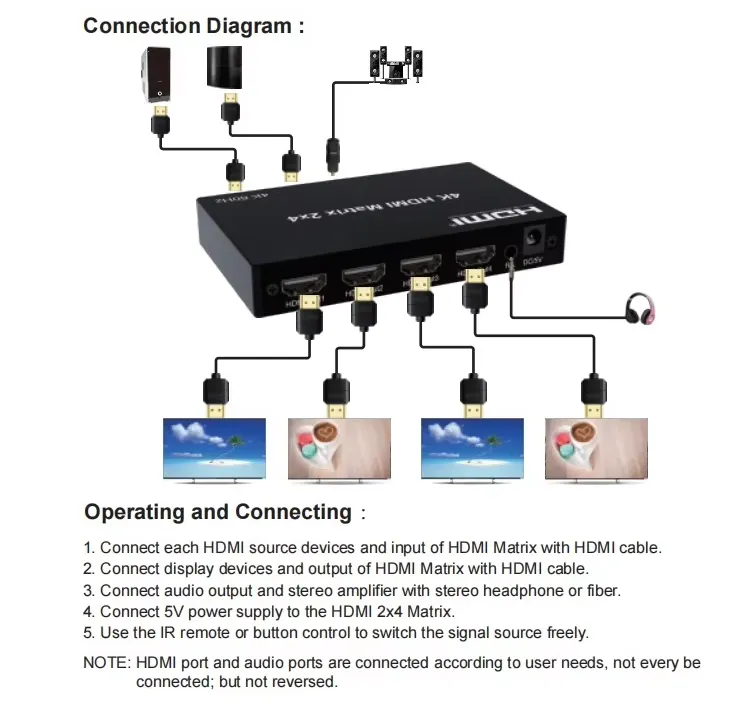

Independent Switching & Splitting: Route any of the two HDMI sources to any or all four displays. Perfect for showing different content on different screens or mirroring the same source.
3D Video Compatibility: Fully supports 3D video formats for immersive viewing experiences.
Advanced Audio Support: Handles LPCM, Dolby, DTS 5.1 channel audio for rich, multi-channel sound.

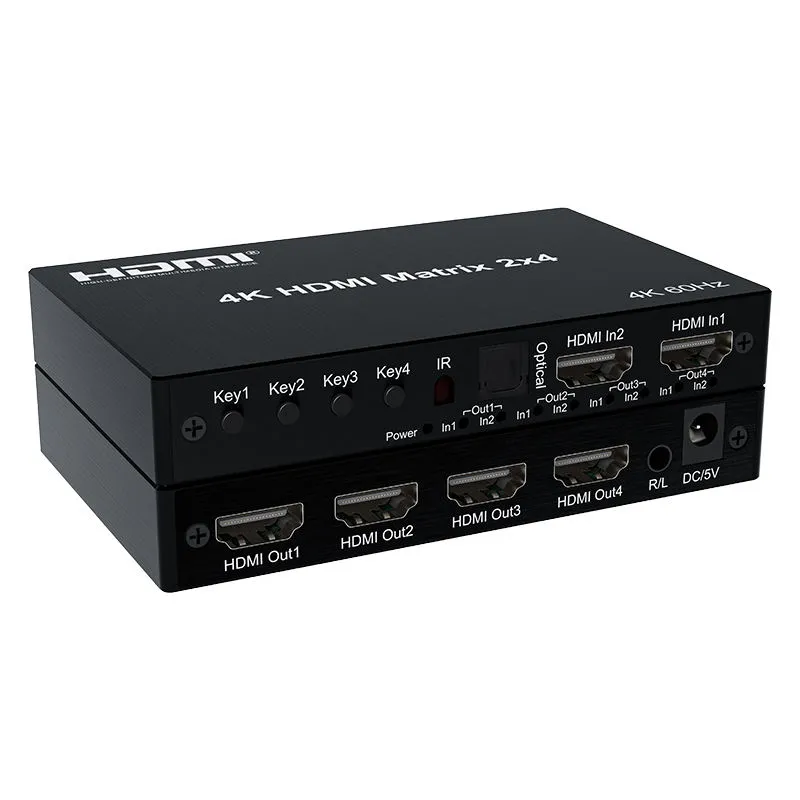

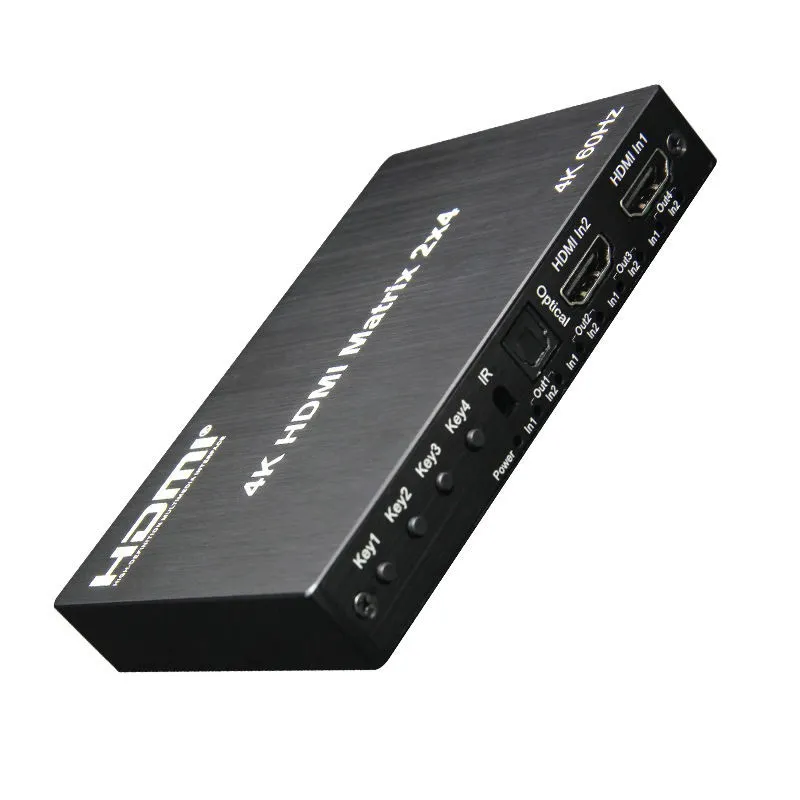

User-Friendly Control: Front-panel buttons and IR remote control (included) for easy source selection and management.
Compact & Reliable Design: Small footprint (122x80x19mm) with sturdy build, low power consumption, and wide operating temperature range, making it suitable for both residential and professional installations.
Thoughtful Service
We are committed to providing a hassle-free experience from purchase to long-term use. Our team offers clear setup guidance, responsive technical support, and practical advice tailored to your specific installation needs. The product comes with a reliable power adapter and all necessary accessories for quick deployment. We prioritize product durability and performance stability, so you can focus on enjoying your multi-display setup without worries. We offer flexible OEM/ODM services including custom firmware, logo customization, packaging design, and private labeling.
Frequently Asked Questions (FAQ)
Q: Can I display different sources on different outputs at the same time?
A: Yes. The 2x4 HDMI matrix supports independent routing, allowing you to assign different input sources to different output displays simultaneously.
Q: Does it support 4K@60Hz on all four outputs?
A: Yes, it fully supports 4K@60Hz resolution across all outputs when using appropriate HDMI 2.0 cables (≤5m recommended for 4K@60Hz).
Q: How do I switch audio channels?
A: Press and hold the "Select" button on the switcher for about 5 seconds to toggle between 5.1 and 2.1 audio channels.
Q: Is an IR remote included?

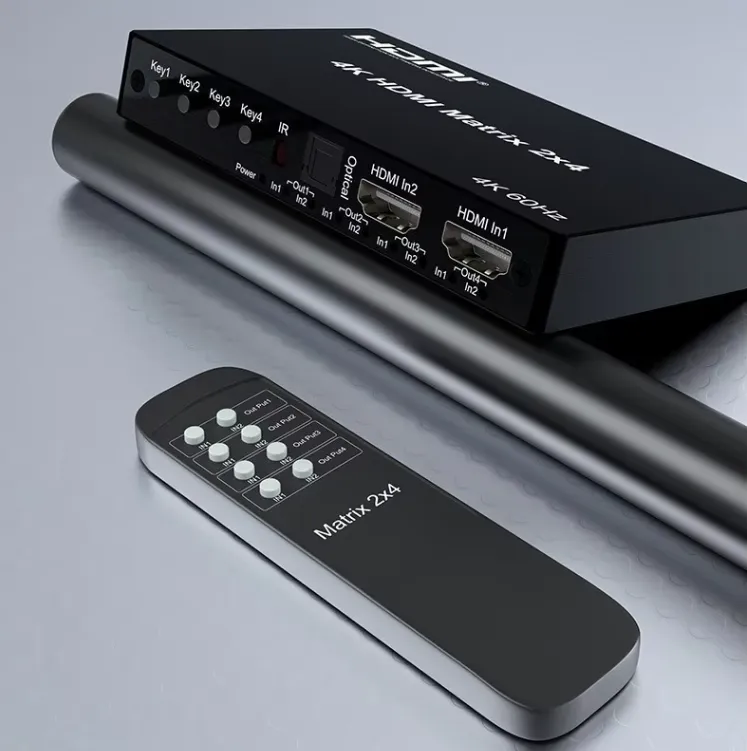

A: Yes, the package includes an IR remote for convenient wireless control of source switching.
Q: What audio outputs are available?
A: HDMI OUT 1 supports simultaneous optical (TOSLINK) and 3.5mm stereo headphone outputs, in addition to the standard HDMI audio pass through on all outputs.
Q: Can it be used in a conference room setup?
A: Absolutely. It is well-suited for conference rooms, training sessions, and presentations where multiple displays need to share content from a limited number of sources.
Q: What is the maximum cable length supported?
A: For best 4K@60Hz performance, use cables no longer than 5m. For 4K@30Hz or lower, up to 15m is supported with standard AWG26 HDMI cables.
