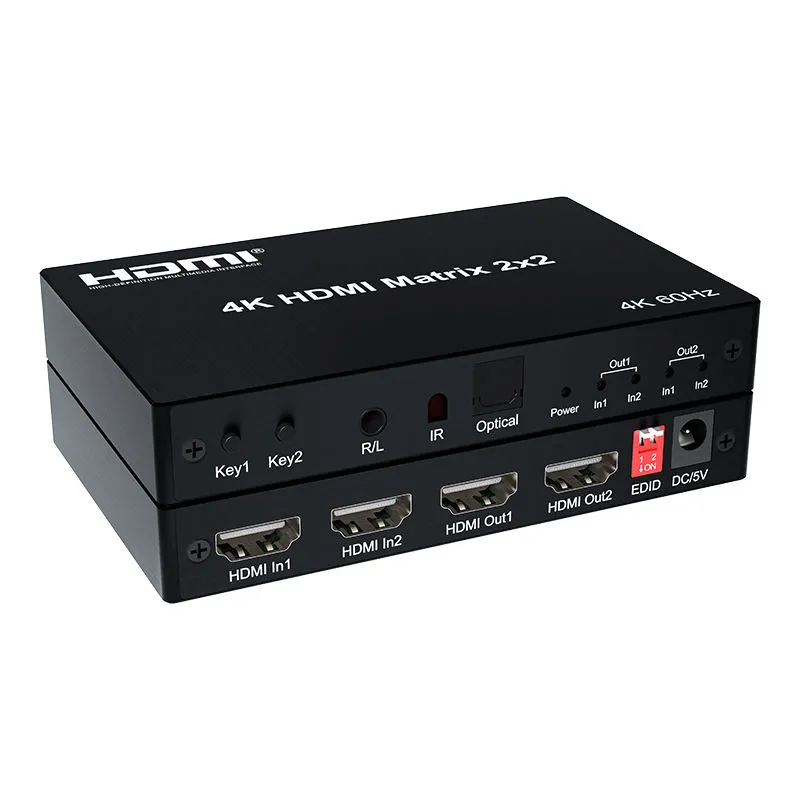

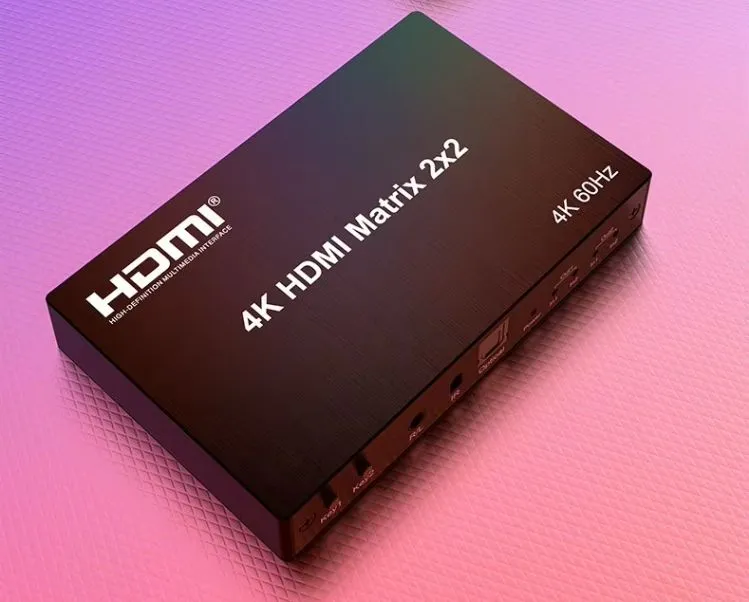

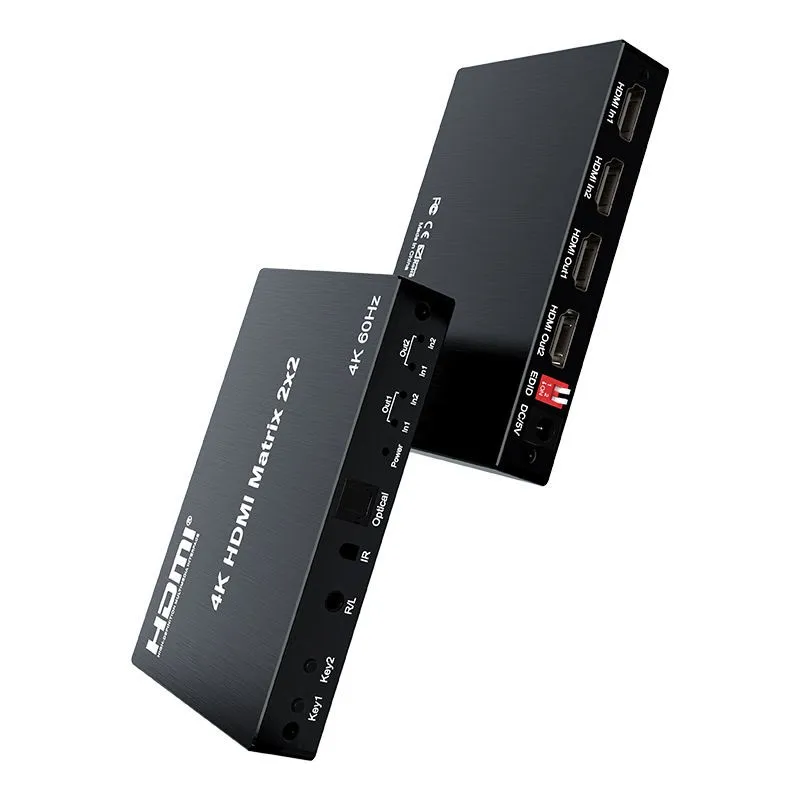

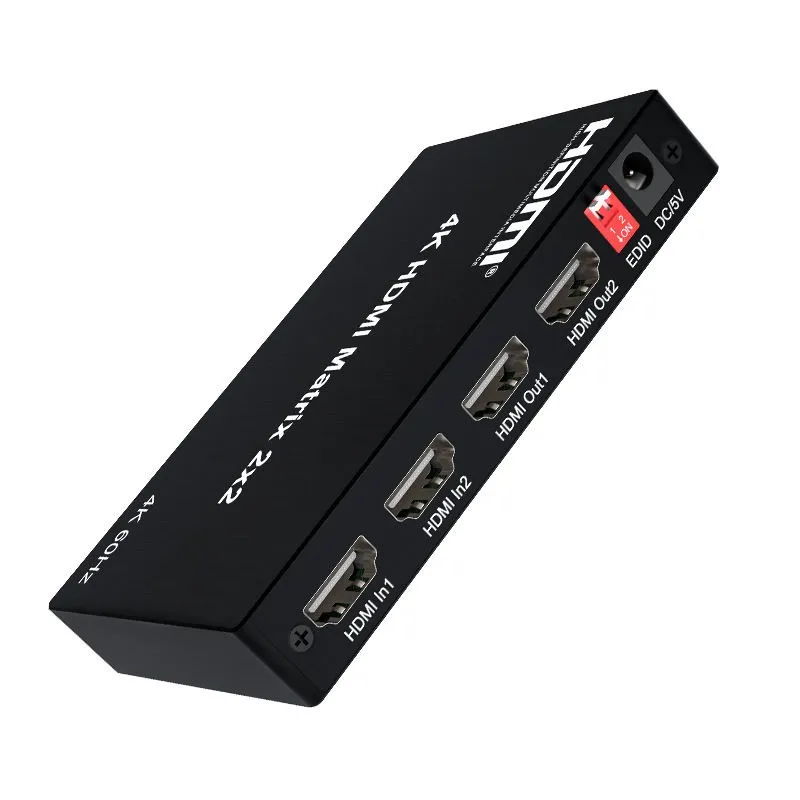

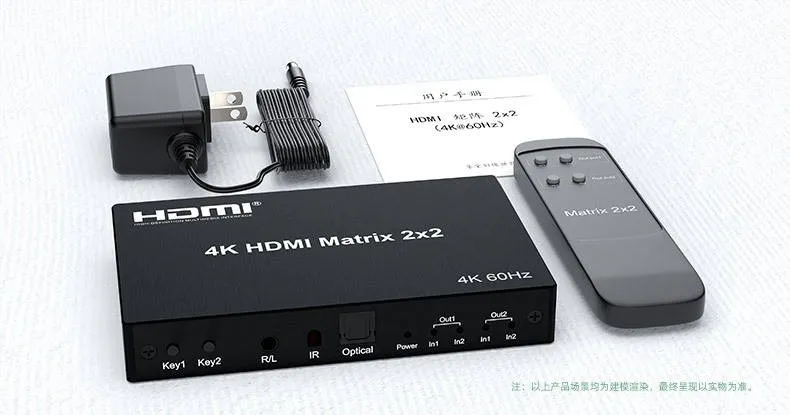

4K 60Hz HDMI Matrix Switch 2x2: 2 Input 2 Output HDMI Matrix with Audio Extraction
Procurement managers in AV system integration, security, education, and corporate environments require consistent quality, exact technical compliance, and dependable lead times. This 2x2 HDMI matrix delivers seamless switching and distribution of two HDMI sources to two displays while providing simultaneous optical and analog audio extraction - engineered for professional installations where uptime and signal integrity are non-negotiable.
Key Features & Business Benefits

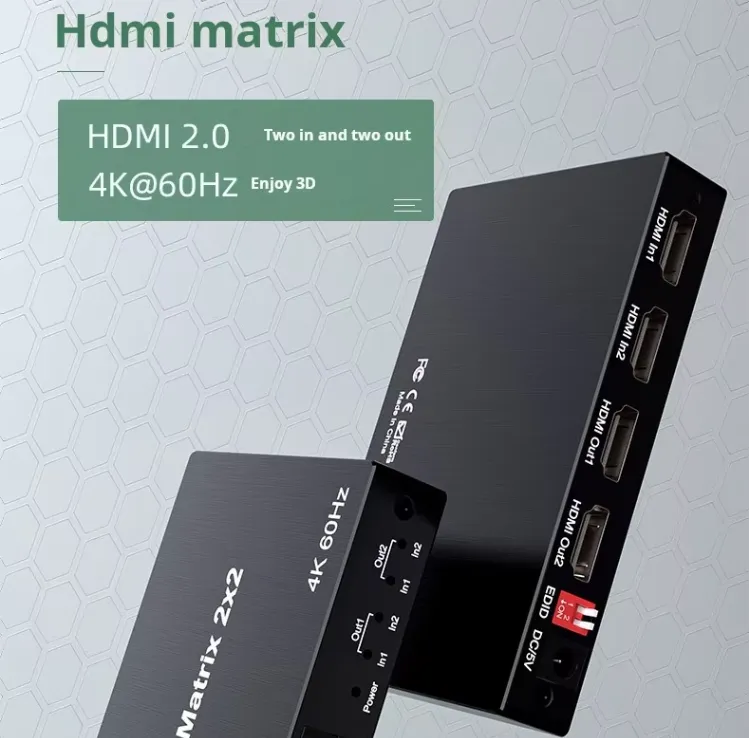

True 4K 60Hz Matrix Switching: Supports 2 HDMI inputs switched or split to 2 HDMI outputs at up to 4K/60Hz with 18Gbps bandwidth, ensuring full compatibility with modern 4K sources and displays.

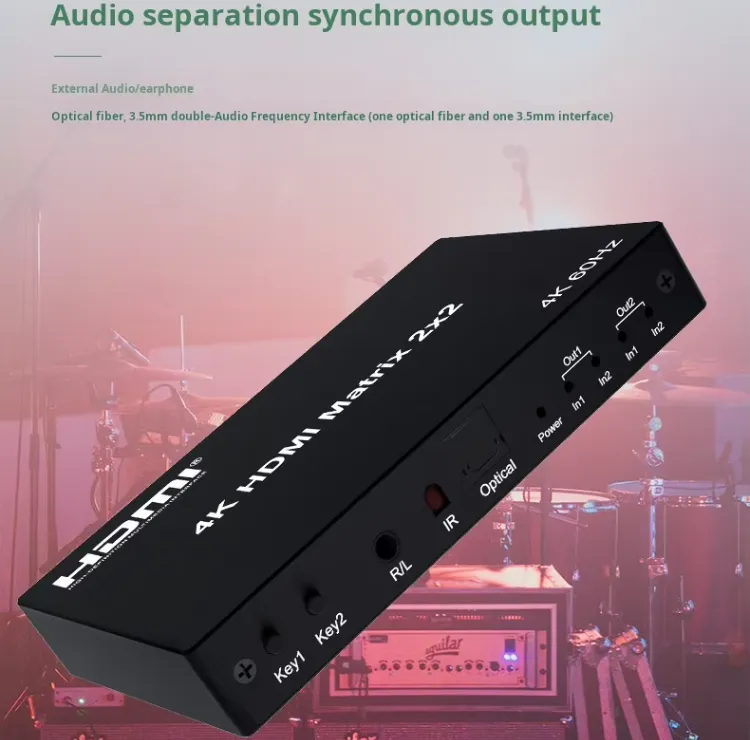

Advanced Audio Extraction: Via HDMI Out 1, supports simultaneous 3.5mm stereo headphone jack and optical (SPDIF) output, compatible with LPCM, Dolby, and DTS 5.1 audio formats.
Lossless Signal Transmission: Maintains full 8/10/12-bit deep color and 3D video formats with zero compression for critical presentation and monitoring applications.

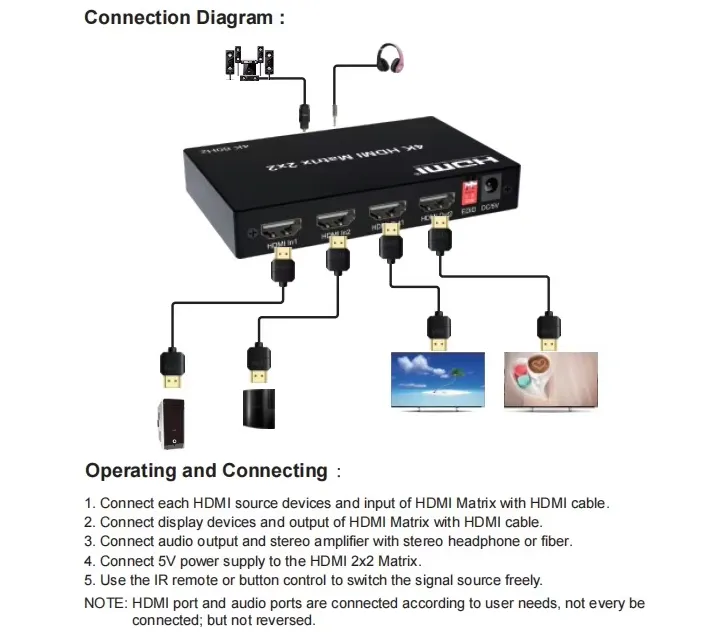

Flexible Distribution Modes: Enables easy switching between sources or simultaneous splitting to multiple displays, ideal for conference rooms, control centers, and training facilities.
Industrial-Grade Stability: Designed for continuous operation with wide temperature tolerance (-15°C to +45°C) and robust power management (DC5V/1A).
Technical Specifications
|
Parameter |
Specification |
|
HDMI Resolution |
Up to 4K/60Hz |
|
Video Color Depth |
8/10/12 bit deep color |
|
Audio Formats |
LPCM / Dolby-AC3 / DTS / DTS 5.1 |
|
Maximum Baud Rate |
18Gbps |
|
Input Cable Distance |
4K/30Hz ≤15m (AWG26), 4K/60Hz ≤5m (HDMI 2.0) |
|
Output Cable Distance |
4K/30Hz ≤15m (AWG26), 4K/60Hz ≤5m (HDMI 2.0) |
|
Power Supply |
Input: AC 100-240V 50/60Hz; Output: DC5V/1A |
|
Max Working Current |
700mA |
|
Operating Temperature |
-15°C to +45°C |
|
Operating Humidity |
5% to 90% RH (non-condensing) |
|
Dimensions (L×W×H) |
122 × 80 × 19 mm |
|
Weight |
174g |
OEM/ODM Manufacturing Capabilities
As a direct HDMI products manufacturer, we maintain full vertical integration from PCB assembly to final testing. Our production lines are equipped for high-volume orders with strict quality control at every stage, including 100% functional testing and aging procedures. We offer flexible OEM/ODM services including custom firmware, logo customization, packaging design, and private labeling.
Frequently Asked Questions (FAQ)
Q: Does this 2x2 HDMI matrix support simultaneous switching and splitting?
A: Yes. It supports both matrix switching (any input to any output) and splitter mode, allowing one source to be displayed on both outputs simultaneously.
Q: What audio formats are supported for extraction via optical and 3.5mm ports?
A: Full support for LPCM, Dolby-AC3, DTS, and DTS 5.1. Optical (SPDIF) and analog 3.5mm outputs are available simultaneously through HDMI Out 1.
Q: What is the maximum stable transmission distance at 4K 60Hz?
A: Up to 5 meters using standard HDMI 2.0 cables. For longer distances, we recommend high-quality certified cables or fiber extenders.
Q: Is this unit suitable for 24/7 operation in control rooms?
A: Yes. It is designed for professional use with wide operating temperature range and stable power design for continuous duty cycles.
