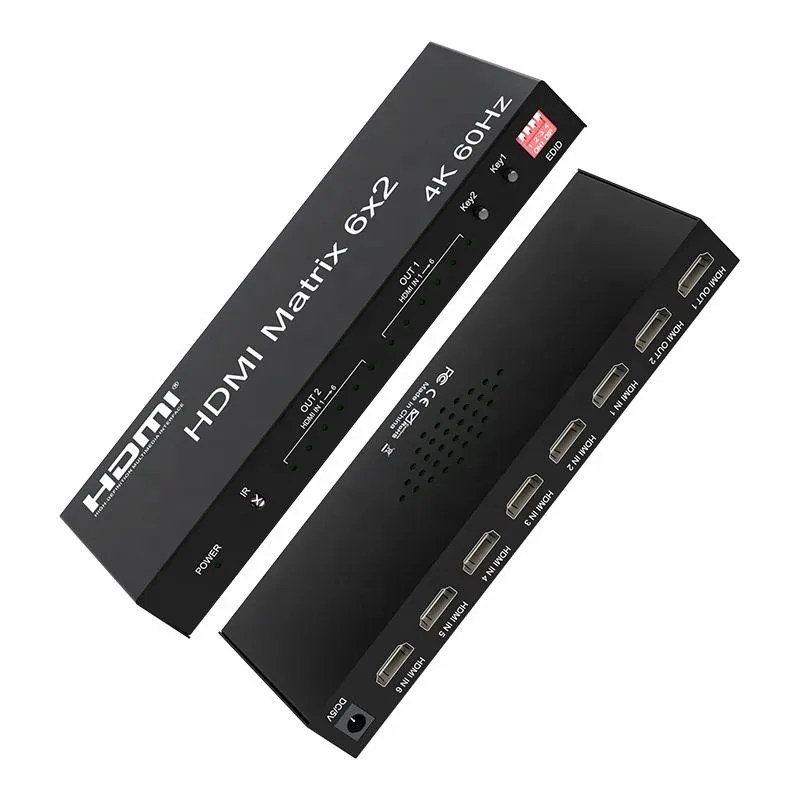

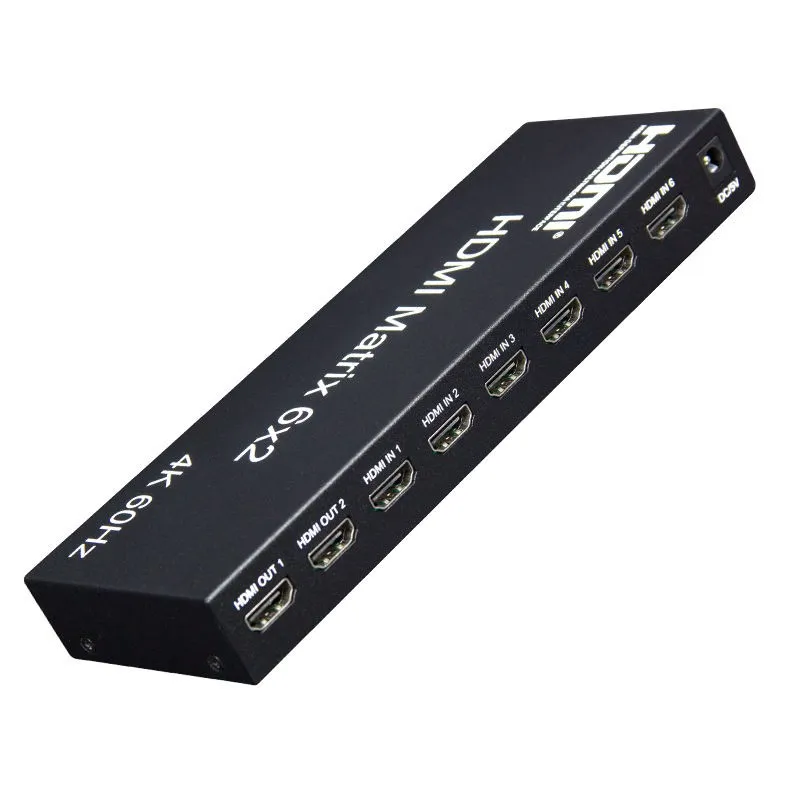

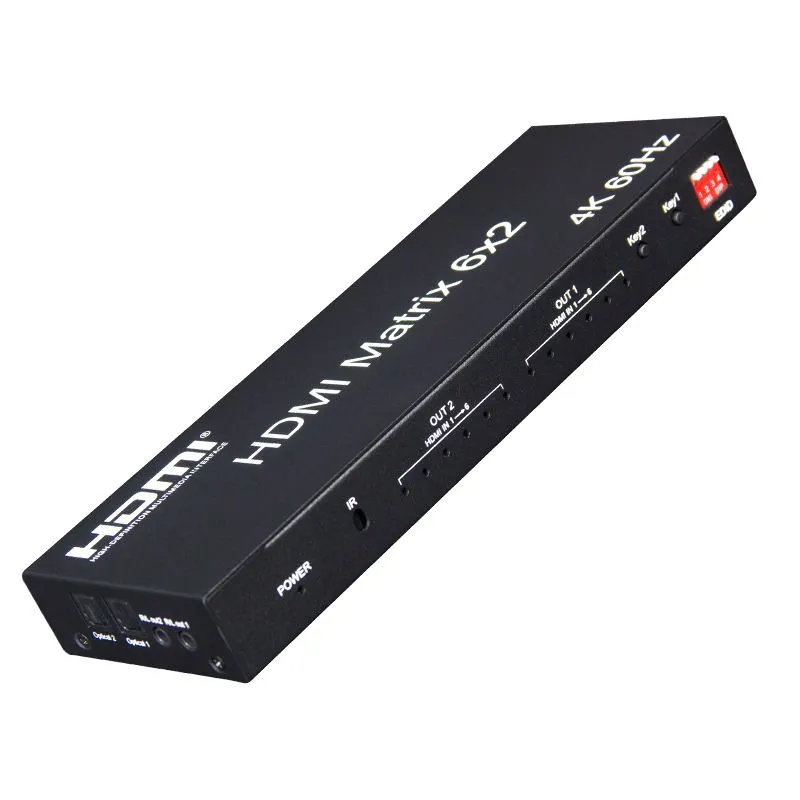

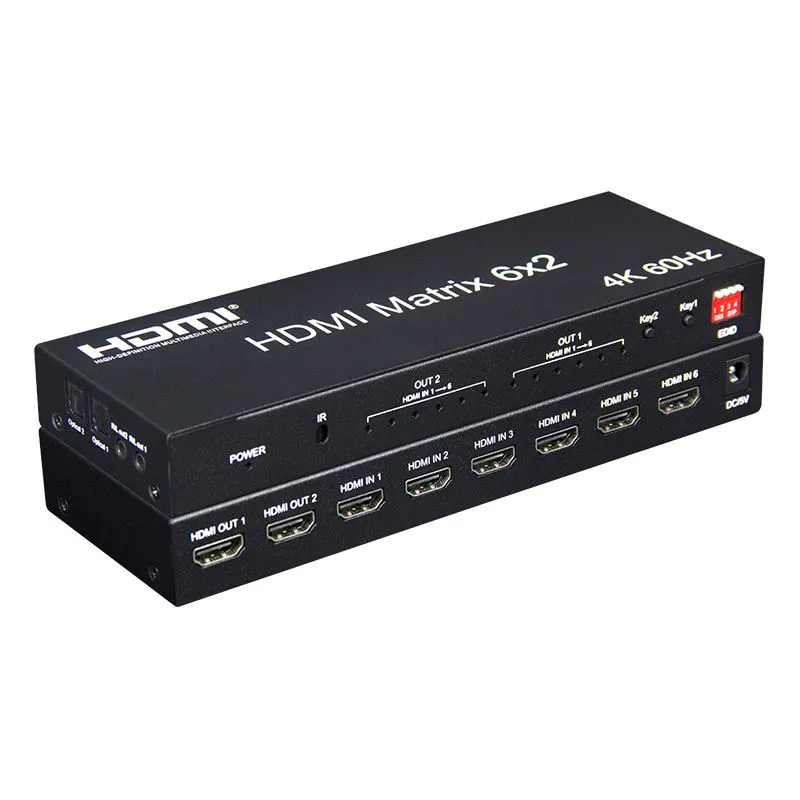

4K HDMI Matrix 6x2 with Optical Audio Extraction and EDID Management
Reliable, cost-effective HDMI signal distribution for professional AV deployments. This 6x2 HDMI matrix switch delivers stable 4K60Hz routing with independent audio outputs, enabling procurement teams to secure competitive pricing, consistent quality, and dependable lead times from a direct manufacturer.
Key Features and Business Benefits

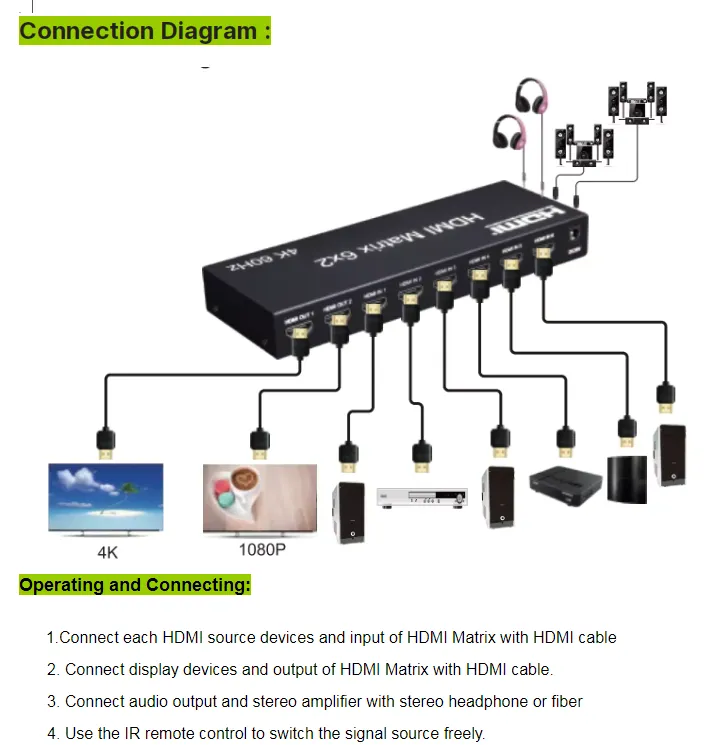

Six HDMI inputs switched or split to two HDMI outputs – Provides flexible source management for multi-room systems, control centers, or presentation environments while minimizing hardware requirements and total cost of ownership.
Independent audio extraction – Simultaneous 3.5mm stereo and optical (SPDIF) outputs on each channel support LPCM, Dolby, and DTS 5.1 audio formats, allowing direct connection to amplifiers or sound systems without compromising video signal integrity.
Full 4K60Hz performance – Supports HDMI 2.0, HDCP 2.2, 3D, and up to 3840×2160@60Hz with 8/10/12-bit deep color and 6Gbps bandwidth (TMDS clock up to 600MHz), ensuring compatibility with modern sources and displays.
EDID management – Guarantees handshake stability between sources and displays, reducing common compatibility issues in complex installations.
Industrial-grade reliability – Designed for continuous operation in data centers, conference rooms, training facilities, and corporate AV setups where uptime and signal integrity are critical.
Technical Specifications
|
Parameter |
Specification |
|
HDMI Version |
2.0 |
|
Maximum Resolution |
3840×2160@60Hz |
|
Video Color Depth |
8/10/12-bit Deep Color |
|
Audio Formats |
LPCM, Dolby AC3, DTS |
|
Maximum Bandwidth |
600MHz |
|
Maximum Data Rate |
6Gbps × 3 |
|
HDMI Inputs |
6 |
|
HDMI Outputs |
2 |
|
Audio Outputs |
3.5mm stereo + Optical (per output) |
|
Input Cable Distance |
≤15m (AWG26 HDMI cable at 4K30Hz) |
|
Output Cable Distance |
≤15m (AWG26 HDMI cable at 4K30Hz) |
|
Power Supply |
DC 5V/1A (AC 100-240V adapter included) |
|
Max Working Current |
600mA |
|
Operating Temperature |
-15°C to +45°C |
|
Operating Humidity |
5–90% RH (non-condensing) |
|
Dimensions (L×W×H) |
200×70×25 mm |
|
Weight |
305g |
OEM/ODM Manufacturing Capabilities
As a direct HDMI products manufacturer, we maintain strict quality control throughout the production process, including incoming material inspection, in-line testing, and final burn-in validation. Our facilities support OEM and ODM customization, including firmware adjustments, logo branding, packaging design, and color options to meet specific project or retail requirements.
Frequently Asked Questions (FAQ)
Q: Does this 6x2 HDMI matrix support simultaneous display of different sources on the two outputs?
A: Yes. Each output can independently select any of the six input sources, allowing different content to be displayed on two monitors or projectors at the same time.
Q: How does the independent audio output function work?
A: Each HDMI output channel supports simultaneous extraction of audio via both 3.5mm stereo jack and optical TOSLINK. Audio follows the selected HDMI source and can be routed independently of the video display.
Q: What is the EDID handling capability?
A: The matrix includes built-in EDID management to ensure reliable handshaking and prevent resolution or compatibility conflicts between multiple sources and displays.
Q: What is the minimum order quantity and typical lead time?
A: MOQ and lead times vary by customization level. Standard models typically ship within 7–15 days. Contact our team for current pricing, stock availability, and production schedules.
