Product Basic Information
The 50M Wireless HDMI Extender supports popular resolutions up to 1920x1080 and works well for home entertainment, conference rooms, classrooms, live streaming setups, or professional AV applications where flexibility matters.
The kit includes one transmitter (TX) and one receiver (RX). Both units are compact, powered via USB (5V/1A), and require no software, drivers, or complex Wi-Fi network configuration. Simply connect the devices, power them up, and wait 30-40 seconds for the signal to stabilize and the image to appear. The system uses H.264 video encoding over 802.11a/n wireless standards on 2.4GHz/5.8GHz dual bands, which helps maintain stability and reduce interference in typical indoor settings.

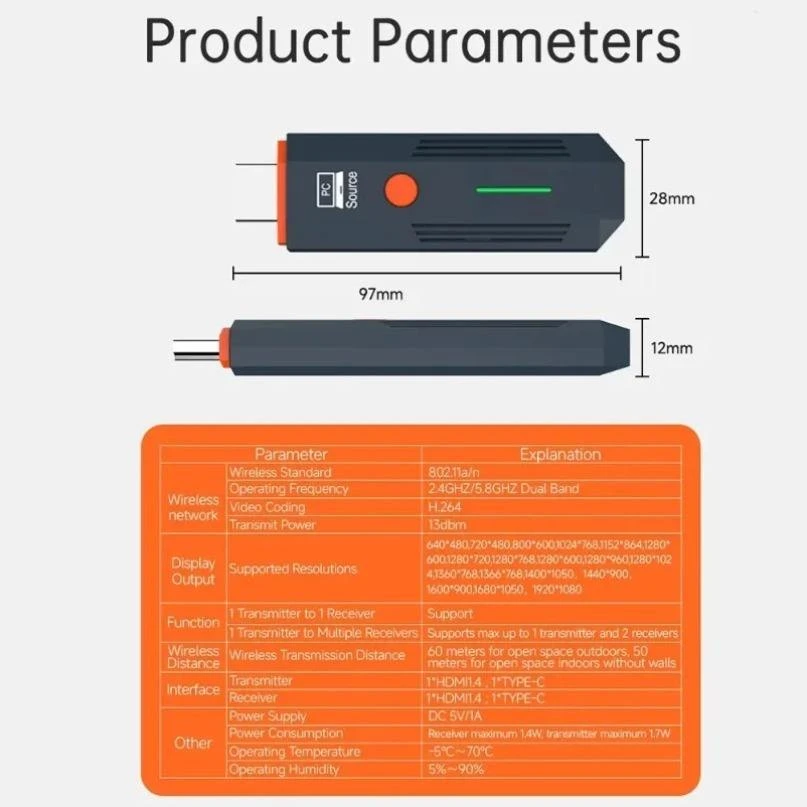

Product Specifications Parameters Table
| Item | Specification |
|---|---|
| Wireless Standard | 802.11a/n |
| Working Frequency Band | 2.4GHz / 5.8GHz dual band |
| Video Encoding | H.264 |
| Transmission Power | 13dBm |
| Supported Resolutions | 640x480, 720x480, 800x600, 1024x768, 1152x864, 1280x600, 1280x720, 1280x768, 1280x960, 1280x1024, 1360x768, 1366x768, 1400x1050, 1440x900, 1600x900, 1680x1050, 1920x1080 |
| Function Support | 1 transmitter to 1 receiver / 1 transmitter to 2 receivers |
| Wireless Transmission Distance | Up to 60m in open space; up to 50m indoors (line-of-sight recommended for best performance) |
| Power Supply | DC 5V/1A (via USB/Type-C ports) |
| Power Consumption | Receiver maximum 1.4W, Transmitter maximum 1.7W |
| Working Temperature | -5°C ~ 70°C |
| Working Humidity | 5% ~ 90% (non-condensing) |
Product Features and Benefits
Easy Plug-and-Play Setup: No apps, no pairing complications in most cases. Connect the transmitter's HDMI port to your source device's HDMI output and power it via the included USB cable (one end to TX Type-C, the other to the source's USB port or adapter). Do the same for the receiver on the display side. After powering on both units, the signal typically appears within 30-40 seconds as the indicator lights stabilize.
Reliable Wireless Performance: Dual-band support (2.4GHz for compatibility and 5.8GHz for higher speed/less interference) combined with H.264 encoding helps deliver smooth 1080P video and audio. Real-world range reaches approximately 50 meters indoors, depending on obstacles, walls, and environmental interference.
Broad Device Compatibility: Works with laptops, PCs, cameras, Blu-ray/DVD players, gaming consoles, set-top boxes, and more. The receiver connects easily to TVs, monitors, or projectors.
Flexible Multi-Display Option: Beyond the standard 1-to-1 setup, the transmitter can support up to two receivers simultaneously for showing the same content on multiple screens.
Low Power & Compact Design: Energy-efficient operation and small form factor make it portable and ideal for both permanent installations and temporary use, such as events or presentations.
Stable Signal with Reasonable Latency: Designed for general video streaming, meetings, and entertainment. Performance is best with clear or near line-of-sight placement.
Thoughtful Service
We understand that reliable AV solutions depend on more than just hardware. That's why we focus on clear, practical support for our customers:
Detailed connection guides included with every kit.
Responsive pre- and after-sales assistance for setup questions.
Emphasis on quality control during manufacturing to minimize defects.
Recommendations for optimal placement (e.g., minimizing thick walls or metal obstructions between TX and RX) to achieve the best transmission distance and stability.
Frequently Asked Questions

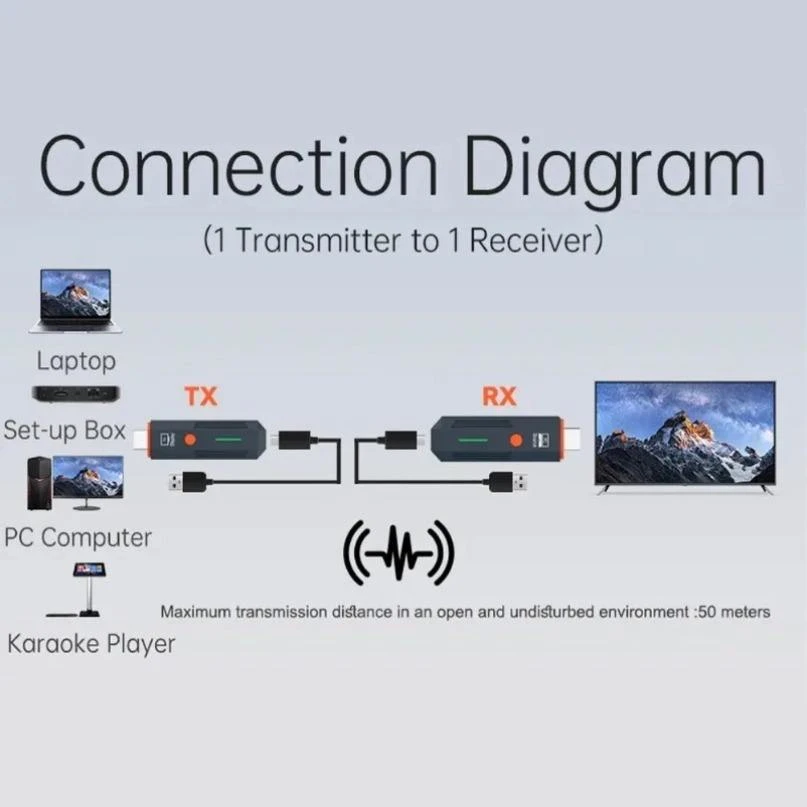

Q: How do I connect the 50M Wireless HDMI Extender?
A: 1. Connect a USB power cable from the source device (or adapter) to the transmitter's Type-C port. 2. Plug the transmitter's HDMI port into the source's HDMI output. 3. Do the same for the receiver on the display side. 4. Power on both units and wait 30-40 seconds for the image to appear and indicator lights to stabilize.
Q: What is the realistic transmission distance?
A: Up to 60 meters in open, unobstructed space and about 50 meters indoors. Actual range can vary based on walls, interference, and placement. Best results occur with minimal obstacles and good line-of-sight.
Q: Does it support 4K or only 1080P?
A: This model is optimized for 1080P resolutions. It supports a wide list of lower resolutions as well, but is not designed for 4K input/output.
Q: Can one transmitter send to multiple receivers?
A: Yes, it supports 1TX to 1RX or 1TX to 2RX configurations for displaying the same content on two screens.
Q: Is there any software or Wi-Fi network required?
A: No. The system creates its own direct wireless link and does not require connection to your home or office Wi-Fi network.
Q: What power sources can I use?
A: Any stable 5V/1A USB power source, including the USB ports on your source device or display, or standard USB wall adapters.
