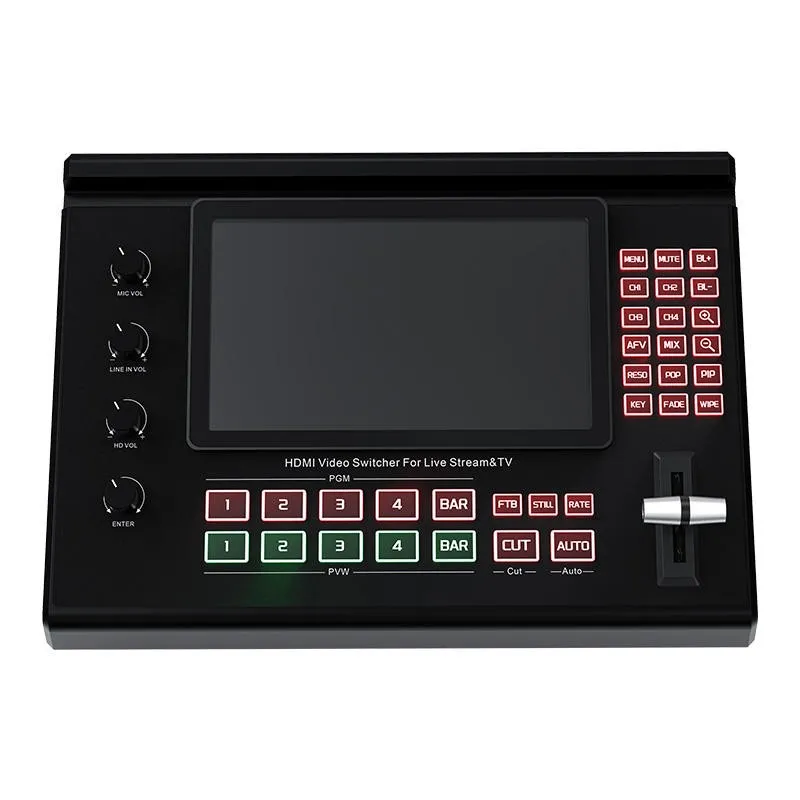

4-Way HDMI Video Switcher | 1080P60Hz Live Streaming Production Switcher with PIP, Green Screen Matting & 7" IPS Preview Monitor
Reliable 4-input HDMI switching solution engineered for consistent performance in live production environments. As a direct manufacturer, we deliver stable supply, competitive factory pricing, and short lead times to procurement professionals seeking dependable video switching equipment without intermediaries.
Key Features and Business Benefits
PIP/POP & 8 Transition Effects: Enables professional picture-in-picture and picture-outside-picture layouts with 8 special effect transitions (fade supported with 3 timing options), streamlining dynamic live production while reducing post-production time.
Green/Blue/Brightness Matting: Built-in chroma and luminance keying supports efficient virtual set creation and background replacement, ideal for interviews, education, and event streaming without external hardware.
Advanced Audio Management: Mixes HDMI embedded audio with external MIC/LINE IN analog sources. Outputs via HDMI or dedicated analog port; supports fixed channel selection and HD audio follow for clean, synchronized audio delivery.
UVC Streaming & Capture: Type-C 3.0 interface delivers YUY2 format video at 1920×1080@60Hz with UVC 1.0 compliance, enabling direct connection to computers for OBS, vMix, or similar software without additional capture cards.
Portable All-in-One Design: High-strength yet lightweight (1030g) unit with power-off memory, colorful backlit keys, and robust build for repeated venue and outdoor use.
Technical Specifications
|
Parameter |
Specification |
|
HDMI Inputs |
4× HDMI, Max 1920×1080@60Hz, RGB/YUV444 |
|
HDMI Outputs |
2× HDMI (PGM: 1080P60/50/24; PVW: 1080P60), HDCP 1.4 |
|

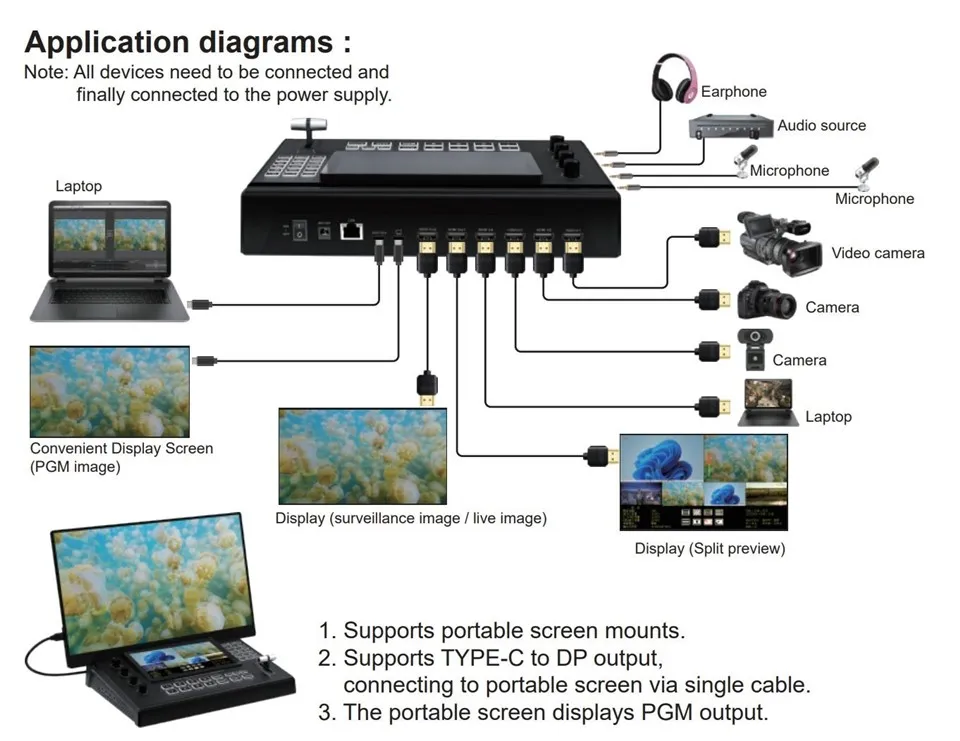

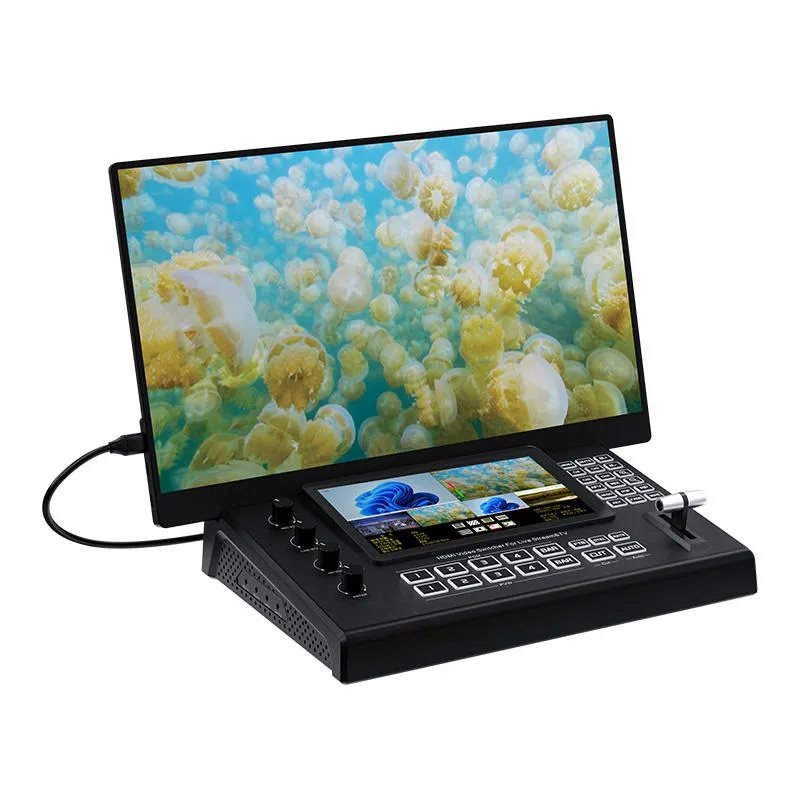

Type-C DP Output |
PGM 1080P60, 5V/1.5A power delivery |
|
Type-C 3.0 Capture |
YUY2 / MJPEG, 1920×1080@60Hz, UVC 1.0 |
|

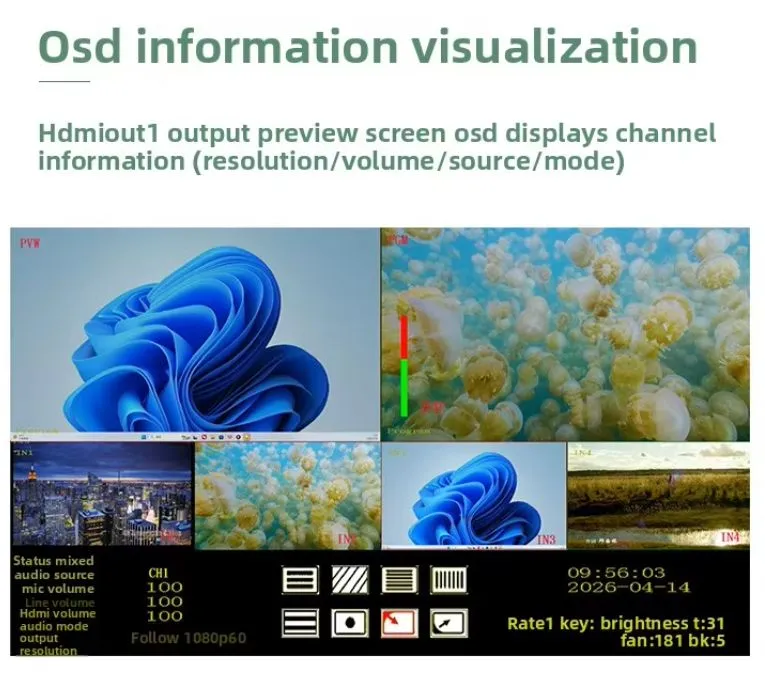

Built-in Monitor |
7" IPS, 1024×600, Backlight adjustable |
|
Audio Support |
HDMI embedded + Analog MIC/LINE IN mixing; PCM 2.0 |
|
Matting Modes |
Green screen, Blue screen, Brightness matting |
|
Transition Effects |
8 special effects; Fade with 3 timing options |
|
Power Input |
DC 12V 3A (Adapter: AC 100-240V) |
|
Power Consumption |
Max 1.8A |
|
Dimensions & Weight |
292×206×63 mm, 1030g |
|
Operating Temperature |
0℃ to +45℃ |
|
Max Cable Length |
≤15m AWG26 HDMI cable (1080P60) |
|

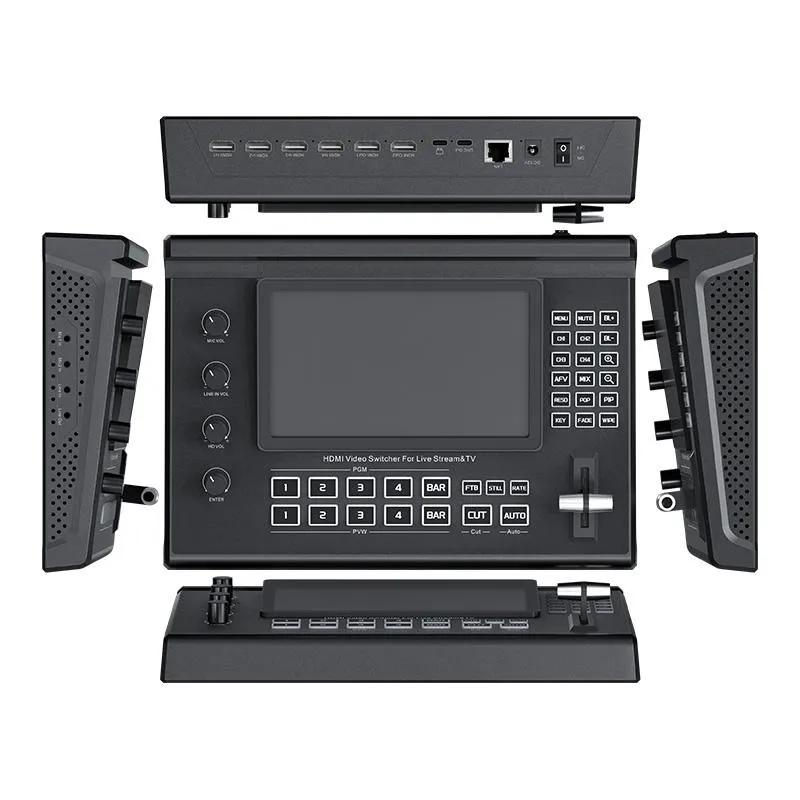

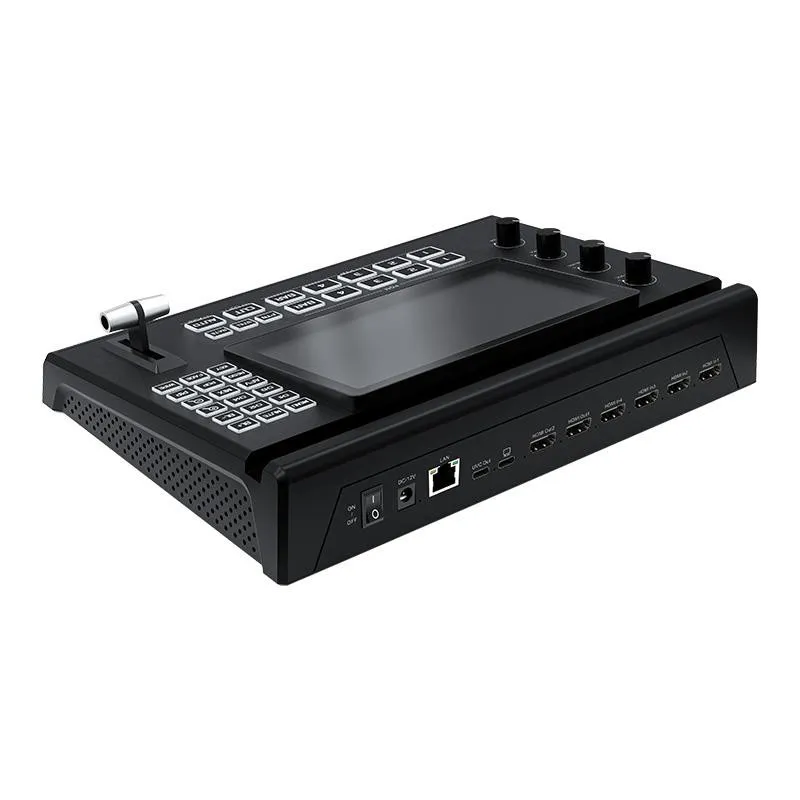

Additional Ports |
RJ45 (for time sync), Power switch |
