8K@30Hz HDMI to DP Converter – HDCP 2.3 & DP 1.4a Support Reliable high-resolution signal conversion for professional AV integration.
This HDMI to DP converter delivers stable 8K@30Hz performance with full HDCP 2.3 compliance, enabling seamless connectivity between modern HDMI sources and DisplayPort monitors or displays. Designed for consistent performance in commercial and industrial applications, it addresses key procurement priorities: competitive factory pricing, reliable lead times, and proven compatibility.
Key Features & Business Benefits
Ultra-High Resolution Support: HDMI input and DP output both reach up to 8K@30Hz, with full backward compatibility for 4K@120Hz and lower resolutions. Supports 8K@60Hz in compression/bypass mode for demanding workflows.
HDCP 2.3 & DP 1.4a Compliance: Ensures protected content transmission and maximum compatibility with latest source devices and displays, reducing integration risks in professional installations.
Advanced Video & Audio Performance: Supports HDR10, FEC, and VRR for visually accurate output. Audio pass through includes DTS-HD, Dolby TrueHD, DTS, Dolby AC3, and DSD formats.

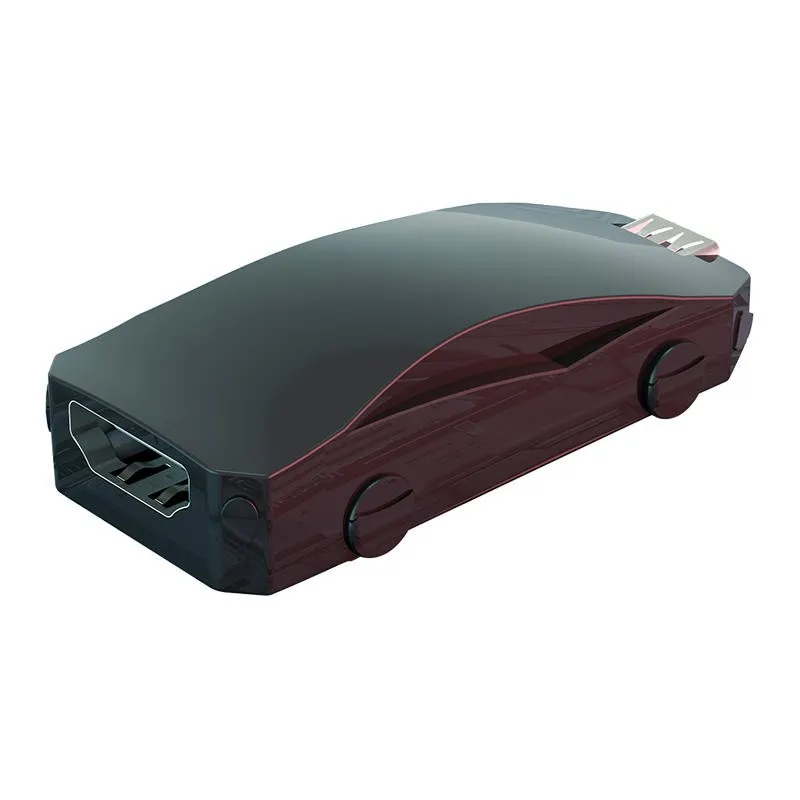

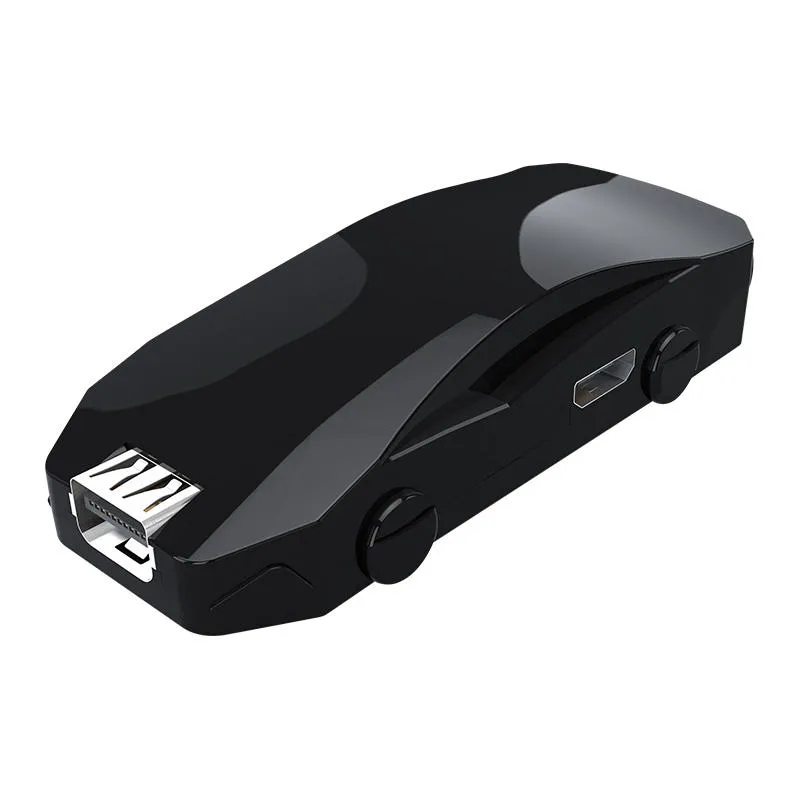

True Plug-and-Play Operation: No drivers or software required. Compact design (63×27×15mm, 15g) simplifies deployment in space-constrained environments.
Robust Transmission Distance: Stable 8K@30Hz performance with standard HDMI input cables up to 3m (AWG24) and DP output cables up to 2m.
Technical Specifications
|
Parameter |
Specification |
|
HDMI Input Resolution |
Up to 8K/30Hz (compatible with 4K@120Hz and below) |
|
DP Output Resolution |
Up to 8K/30Hz (compatible with 4K@120Hz and below) |
|
HDCP Support |
HDCP 2.3 |
|
DP Version |
DP 1.4a |
|
Color Format |
RGB / YCbCr |
|
Audio Formats |
DTS-HD / Dolby TrueHD / DTS / Dolby AC3 / DSD |
|
Input Cable Distance |
8K/30Hz ≤ 3m (AWG24 HDMI standard cable) |
|
Output Cable Distance |
8K/30Hz ≤ 2m (DP standard cable) |
|
HDMI Input Ports |
1 |
|
DP Output Ports |
1 |
|
Max Working Voltage |
DC 5.5V |
|
Max Working Current |
420mA |
|
Operating Temperature |
-15°C to +45°C |
|
Operating Humidity |
5% to 90% RH (no condensation) |
|
Dimensions (L×W×H) |
63 × 27 × 15 mm |
|
Weight |
15g |
OEM/ODM Manufacturing Capabilities
As a direct manufacturer of HDMI connectivity solutions, we maintain full in-house control over design, production, and quality assurance. Our facilities support flexible OEM/ODM programs with custom branding, firmware optimization, packaging, and logo customization. We operate under strict ISO-standard quality management with 100% functional testing before shipment.
Frequently Asked Questions
Q: What is the maximum supported resolution for this HDMI to DP converter?
A: Both HDMI input and DP output support up to 8K@30Hz, with full compatibility for 4K@120Hz and all lower resolutions. 8K@60Hz is supported in compression/bypass mode.
Q: Does this converter support protected content and latest standards?
A: Yes. It fully supports HDCP 2.3 and DP 1.4a, ensuring compatibility with protected premium content sources and modern Display Port displays.
Q: Is driver installation or software configuration required?
A: No. The converter is fully plug-and-play with no additional drivers needed on source or display devices.
Q: What cable lengths are recommended for stable 8K@30Hz performance?
A: We recommend HDMI input cables ≤ 3m (AWG24) and DP output cables ≤ 2m for optimal signal integrity at maximum resolution.
Q: Do you offer customization and bulk pricing for OEM clients?
A: Yes. We provide OEM/ODM services including custom firmware, branding, labeling, and packaging. Please contact our team for volume pricing and lead time details.
