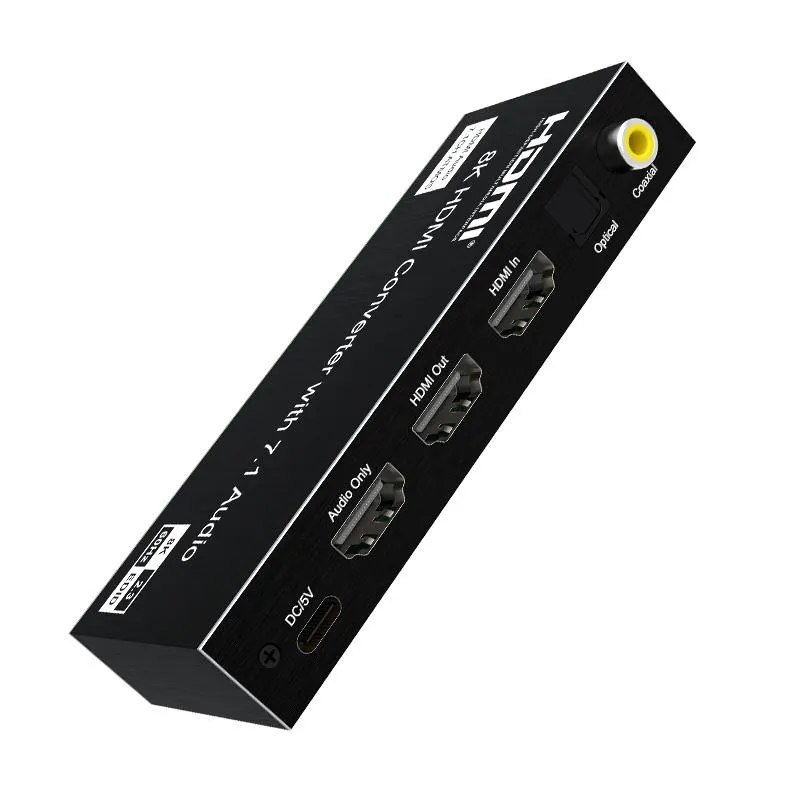

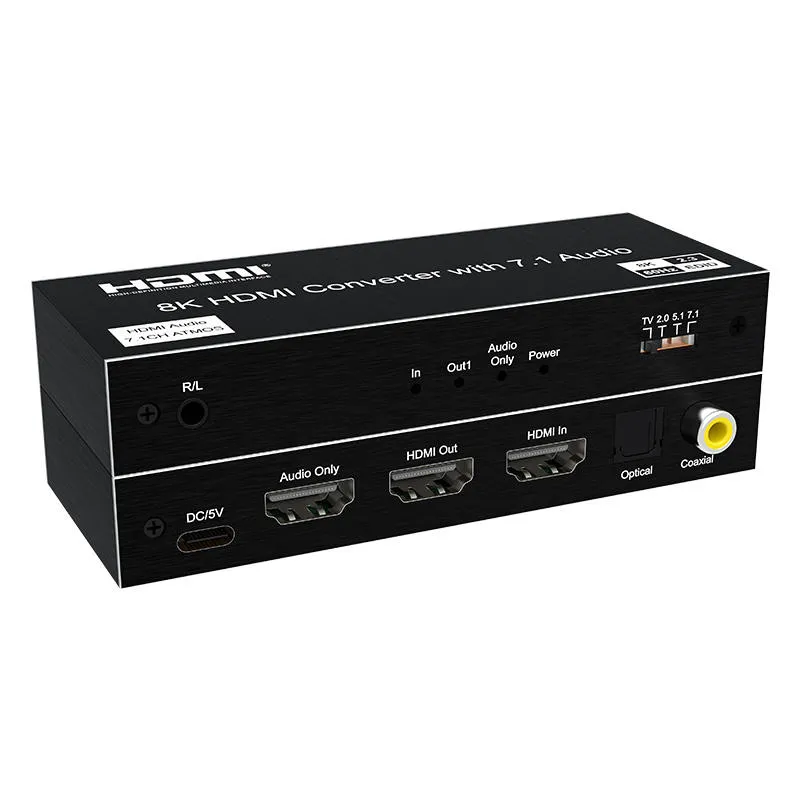

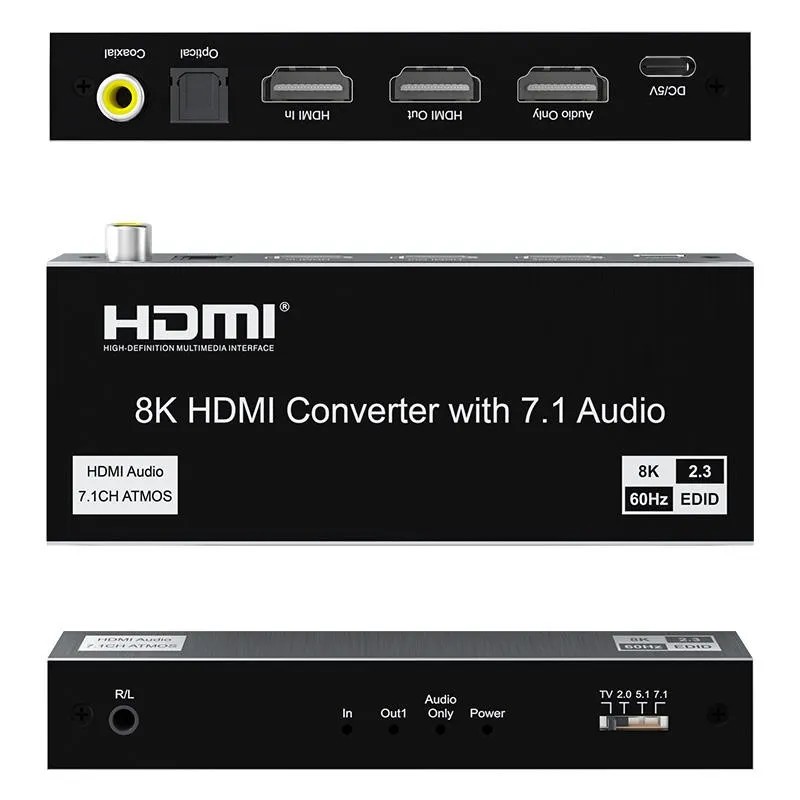

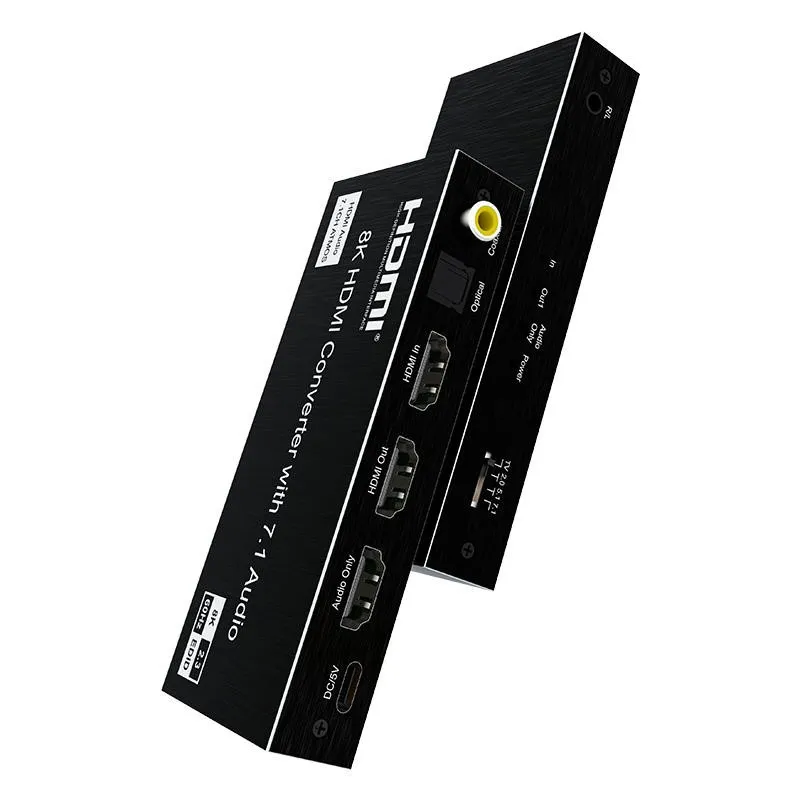

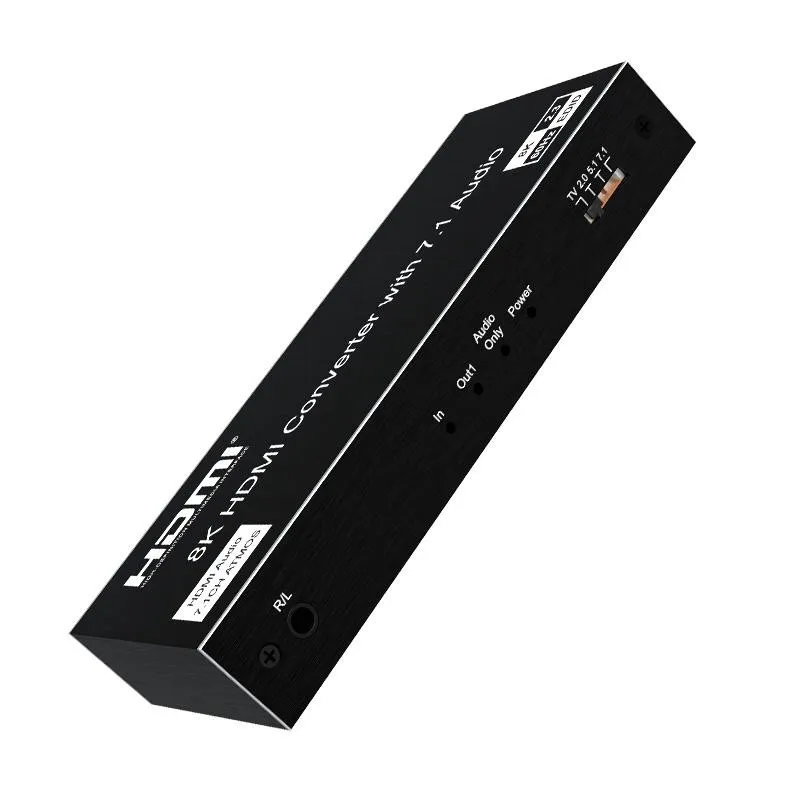

8K HDMI Audio Converter – 8K@60Hz Audio Extractor

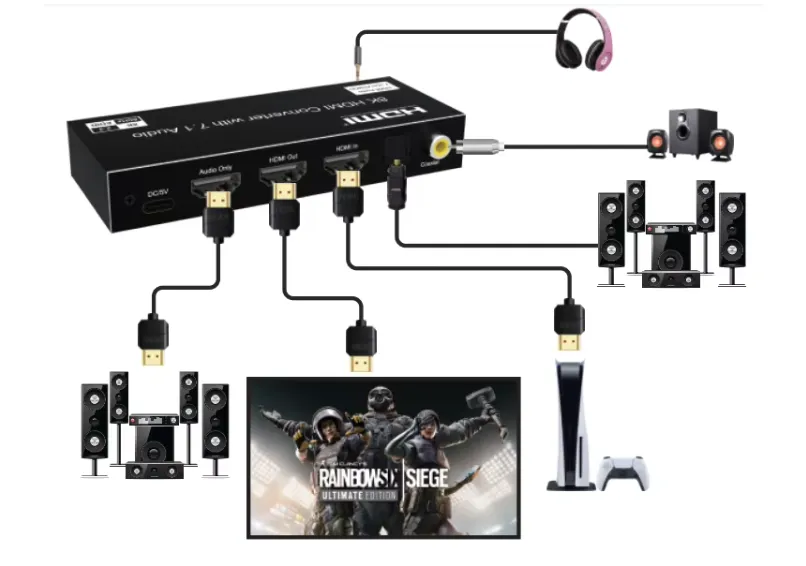

This professional-grade 8K HDMI Audio Converter extracts and separates audio signals from HDMI sources while passing pristine video to displays or projectors. It supports up to 8K@60Hz video with VRR and HDR10, ensuring full compatibility with modern AV systems. Audio can be routed via 3.5mm analog, optical/coaxial digital, or dedicated HDMI audio output, giving system integrators and AV distributors the flexibility required for diverse installations.

True 8K Performance: Supports 8K@60Hz (YCbCr 4:2:0), 4K@120Hz, and maximum 40Gbps bandwidth with 8/10/12-bit deep color, delivering future-proof video transmission for premium AV projects.

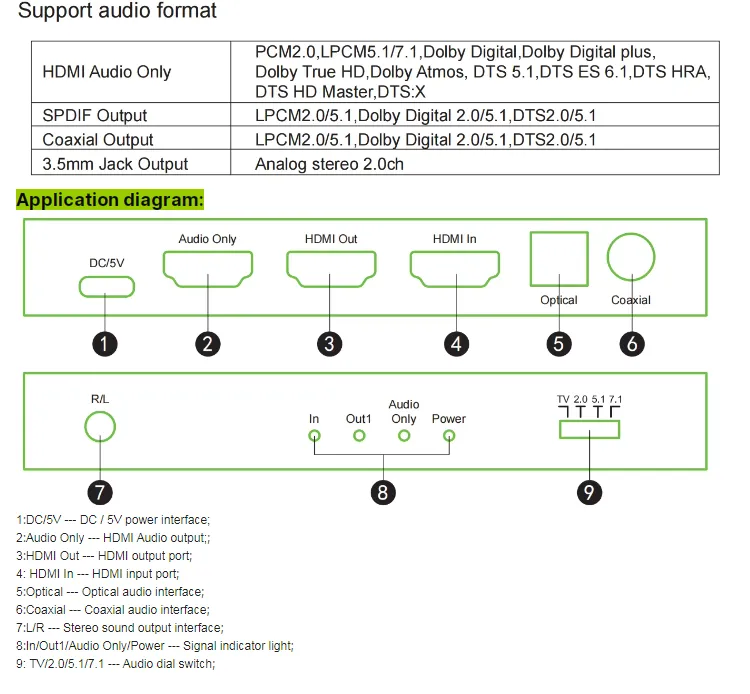

Flexible Audio Separation: Extracts HDMI audio to 3.5mm analog (2.0 CH), optical/coaxial digital (up to 5.1 CH), and HDMI Audio Only (up to 7.1 CH) outputs. Audio dial switch enables quick mode selection (TV / 2.0 CH / 5.1 CH / 7.1 CH) for streamlined system configuration.

Advanced Format Support: Compatible with VRR and HDR10 for smooth, high-dynamic-range content, ideal for gaming, home theater, and commercial display applications.

Stable Long-Distance Transmission: Input ≤3m and output ≤5m at 8K@60Hz, reducing signal degradation in real-world installations.

Industrial Reliability: Wide operating temperature range (-15°C to +45°C), low power consumption (max 0.5A), and compact design (121×57×19mm, 118g) for easy integration and high-density deployments.

As an established HDMI products manufacturer, we maintain full in-house production control from PCB assembly to final testing. Our facilities support flexible OEM/ODM programs with custom firmware, branding, packaging, and color options. We implement strict quality control with 100% functional testing, burn-in procedures, and batch traceability. Typical MOQ starts from 100–500 units depending on configuration, with stable production capacity ensuring on-time delivery. Our team provides dedicated engineering support for custom EDID settings, audio mapping, and system certifications to match your exact project requirements.
