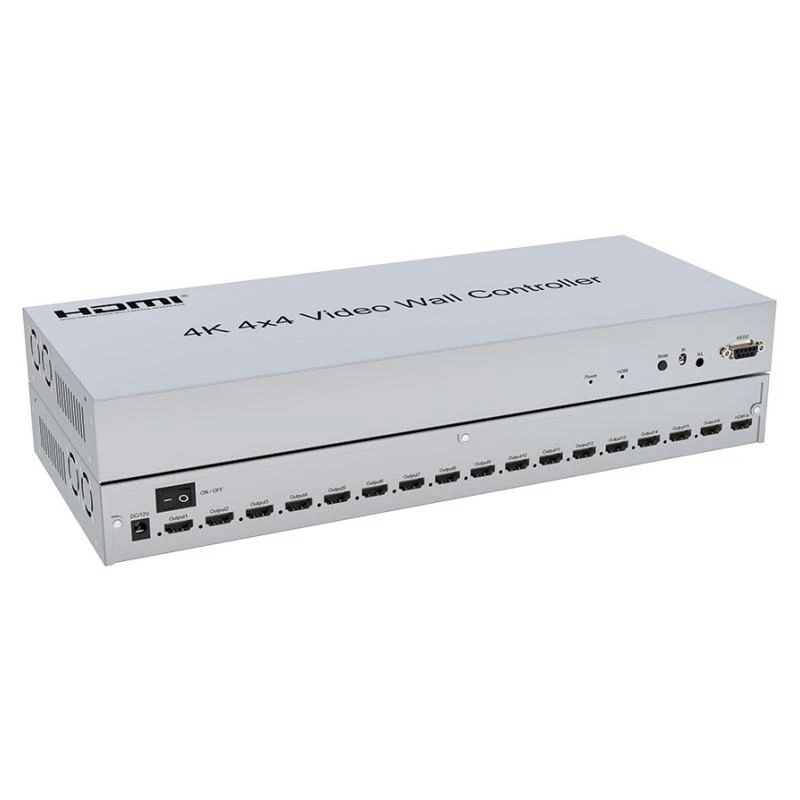

4K 4x4 HDMI Video Wall Controller – Reliable 16-Screen Video Wall Processor for Commercial Installations (Model: HDVW4X4)
This 4K 4x4 HDMI video wall controller processes a single 4K source and distributes it across up to 16 displays with precise synchronization and multiple splicing modes. Single HDMI 4K Input to 16 HDMI Outputs: Supports input resolutions up to 3840×2160@30Hz and outputs 1920×1080@60Hz per port, enabling cost-effective large-scale video walls using standard Full HD displays.
Core Features & Business Benefits
Multiple Splicing Modes: Flexible 1×1, 1×2, 2×2, up to 4×4 configurations with selectable layouts, allowing quick adaptation to different venue requirements.
Plug-and-Play Operation: No complex PC software or drivers required; simple front-panel and IR remote control reduces installation time and technical support costs.
Stable Signal Transmission: Supports input cable lengths up to 8m and output up to 10m (AWG26 HDMI standard cables), suitable for most commercial fixed installations.
Industrial-Grade Reliability: Wide operating temperature range (-10°C to +45°C) and robust power design ensure 24/7 operation in demanding environments such as control rooms, exhibition halls, and public stations.
Technical Specifications
|
Parameter |
Specification |
|
HDMI Input Resolution |
Up to 3840×2160@30Hz |
|
HDMI Output Resolution |
1920×1080@60Hz per port |
|
Number of Outputs |
16 × HDMI |
|
Input Cable Length (max) |
≤8m (AWG26 HDMI standard cable) |
|
Output Cable Length (max) |
≤10m (AWG26 HDMI standard cable) |
|
Max Working Current |
0.9A |
|
Power Adapter |
Input: AC 100-240V 50/60Hz; Output: 12V DC/2A |
|
Operating Temperature |
-10°C to +45°C |
|
Dimensions (L×W×H) |
411 × 180 × 45 mm |
|
Weight |
1.97 kg |
|
Control Methods |
IR remote, front panel buttons |
Product Application Fields
4K 4x4 HDMI Video Wall Controller for Control Room Multi-Display Monitoring & Command Centers
In mission-critical control rooms and command centers, operators need seamless real-time visualization across multiple screens without lag or complex software dependencies. Our HDVW4X4 processes a single 4K input and distributes synchronized Full HD output across up to 16 screens in flexible 1×1 to 4×4 splicing modes. Plug-and-play front-panel and IR control eliminate PC software needs, while industrial-grade reliability (-10°C to +45°C) supports 24/7 operation. We offer engineer one-on-one selection guidance, small-batch sampling for pilot projects, and stable factory production capacity ideal for annual bulk procurement or OEM integration into larger monitoring systems.
4K 4x4 HDMI Video Wall Controller for Exhibition Halls & Trade Show Digital Displays
Exhibition organizers and venue managers frequently face tight installation windows, varying screen layouts, and the high cost of sourcing uniform large-format 4K panels. Unstable signal transmission over longer cable runs and complicated configuration further increase on-site troubleshooting. This controller enables cost-effective video walls using standard Full HD displays, supporting precise synchronization and selectable splicing configurations up to 4×4. With reliable HDMI cable lengths (input up to 8 m, output up to 10 m) and simple remote operation, setup time is dramatically reduced. For B2B buyers, we provide special-layout customization support, low-volume trial units for event testing.
4K 4x4 HDMI Video Wall Controller for Public Stations & Transportation Hub Information Walls
Public stations, airports, and transit hubs demand durable, always-on multi-screen information systems that can adapt to different spatial requirements while remaining easy to maintain. Our industrial-grade processor delivers stable 1920×1080@60 Hz output per port from a single 4K source, with robust power design for demanding environments. Quick adaptation via multiple splicing modes and plug-and-play simplicity lower both installation and ongoing operational costs. Procurement teams benefit from one-on-one engineer assistance for site-specific configuration, small-batch sampling before full rollout, and reliable factory capacity for large-scale or multi-year centralized purchasing programs.
Frequently Asked Questions
Q: What is the maximum input resolution and how does it scale to 16 screens?
A: The controller accepts up to 3840×2160@30Hz HDMI input and intelligently divides the image into 16 synchronized 1920×1080@60Hz outputs for a seamless 4×4 video wall.
Q: Can the splicing modes be changed after installation?
A: Yes. Multiple preset splicing modes can be selected via IR remote or front panel without rebooting the system.
Q: Is this suitable for 24/7 continuous operation?
A: Yes. The industrial temperature range and stable power design support continuous commercial use in control rooms and public venues.
Q: What cable lengths are supported?
A: Up to 8m for input and 10m for outputs using standard AWG26 HDMI cables, covering most typical installation distances.
