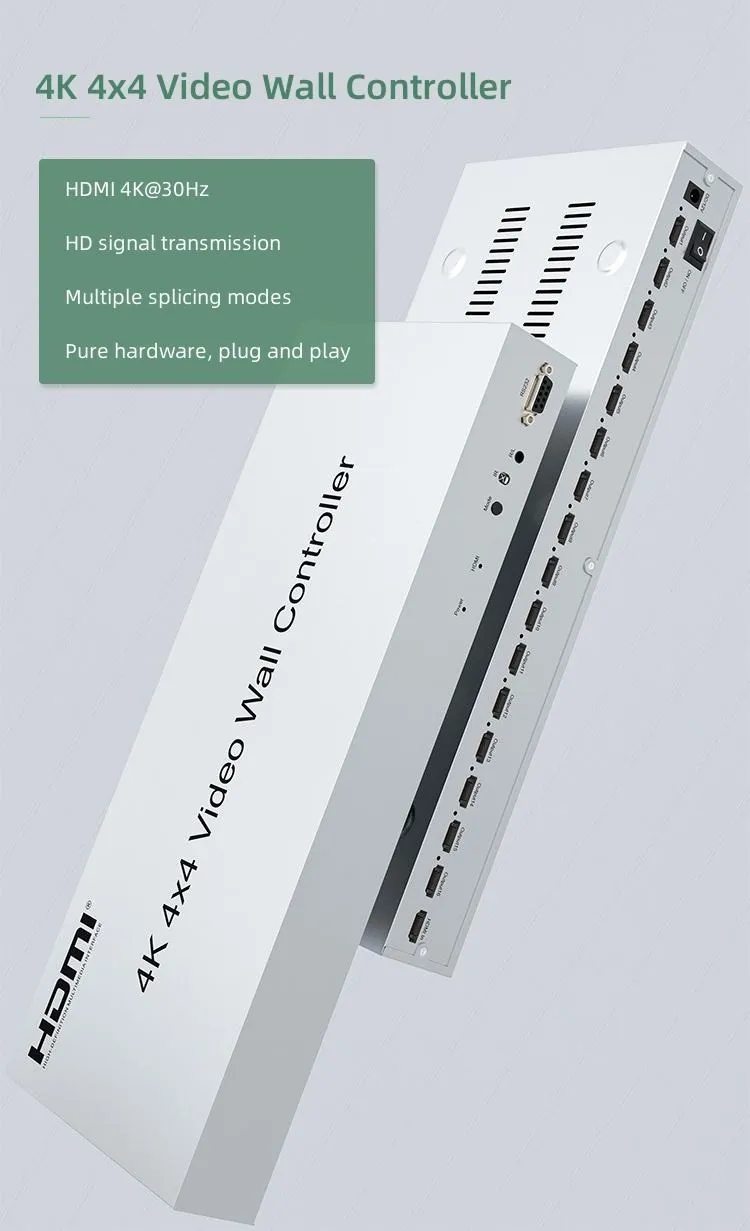

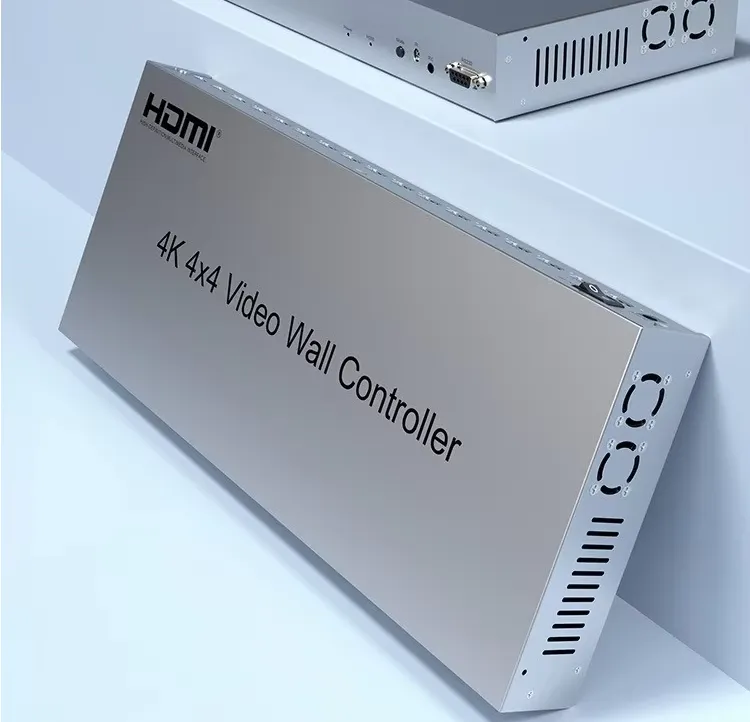

4X4 HDMI Video Wall Controller - Professional 16-Screen Video Mosaic Solution
Procurement managers sourcing AV equipment consistently require video wall controllers that deliver proven performance, competitive unit pricing, and reliable delivery schedules to meet tight project timelines. As a direct manufacturer, AOST provides the 4X4 HDMI Video Wall Controller engineered for immediate deployment, enabling cost-effective scaling of high-definition video displays across education, restaurants, transportation hubs, and commercial environments.
Technical Specifications
|
Parameter |
Specification |
|
HDMI Input Resolution |
Up to 3840x2160/30Hz |
|
HDMI Output Resolution |
1920x1080/60Hz (per port) |
|
Input Cable Length |
≤8m (AWG26 HDMI standard cable) |
|
Output Cable Length |
≤10m (AWG26 HDMI standard cable) |
|
Max Working Current |
0.9A |
|
Power Adapter |
Input: AC 100V-240V (50/60Hz); Output: 12V DC/2A |
|
Operating Temperature Range |
-10℃ to +45℃ |
|
Dimensions (L x W x H) |
411 × 180 × 45 mm |
|
Weight |
1.97 kg |
Key Features and Business Benefits

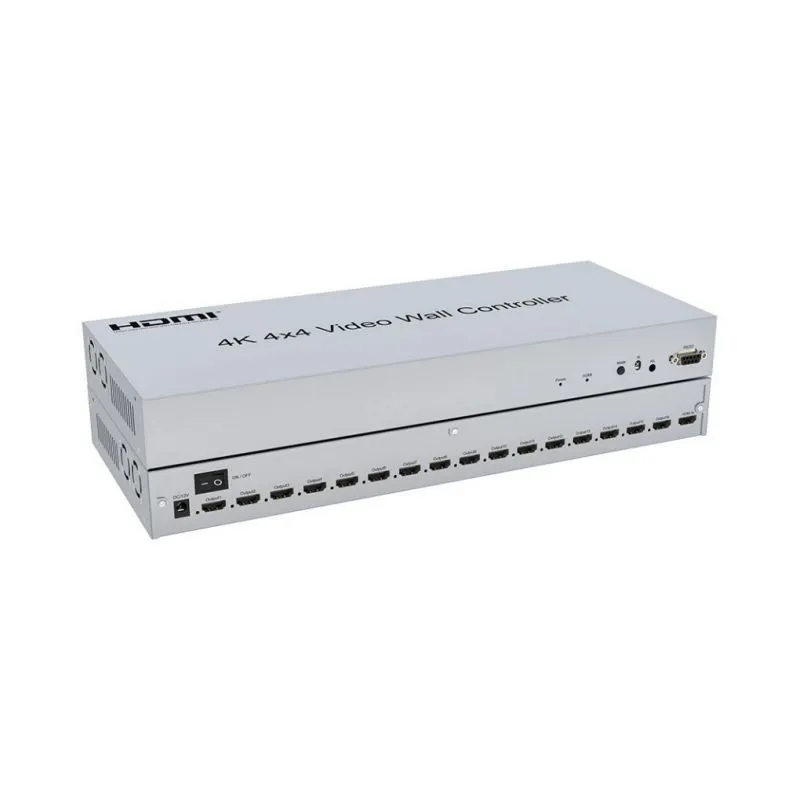

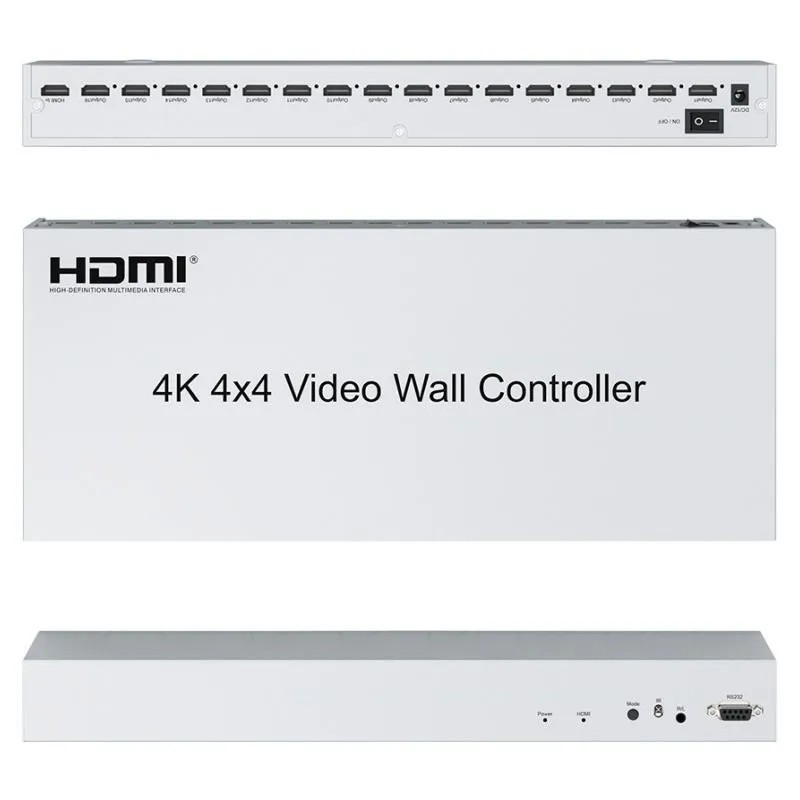

HDMI Input with 16-Channel HDMI Output
Accepts a single HDMI video source and distributes it across 16 independent HDMI outputs. This divides one complete high-definition signal into 16 segments, forming a dynamic 4x4 video wall using standard LCD TVs, rear projection screens, or compatible display units-delivering synchronized, large-format visuals without additional signal processing hardware.

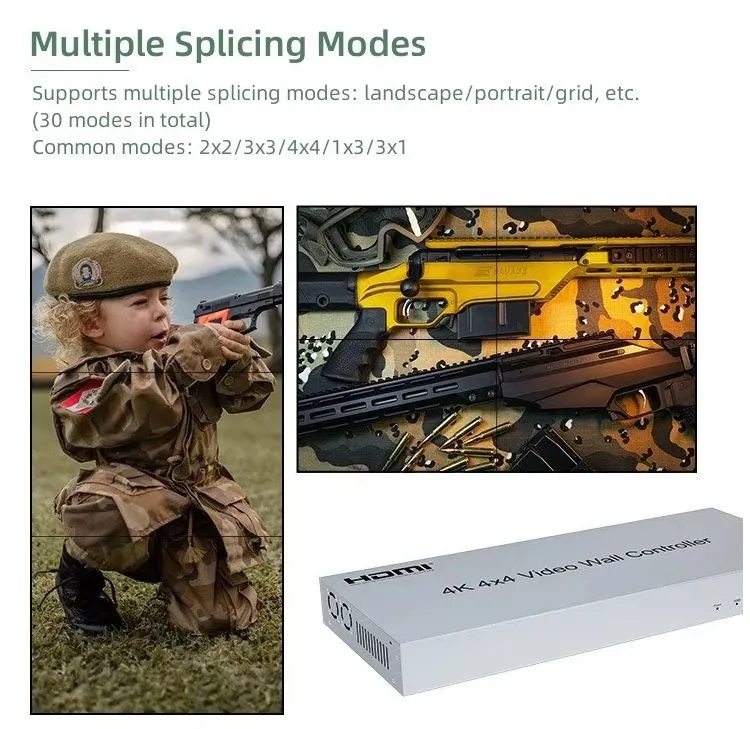

Multiple Splicing Modes
Supports flexible video wall configurations to match diverse installation layouts. Operators can select the optimal splicing arrangement directly on the unit, simplifying project planning and reducing on-site adjustment time for procurement-managed rollouts.

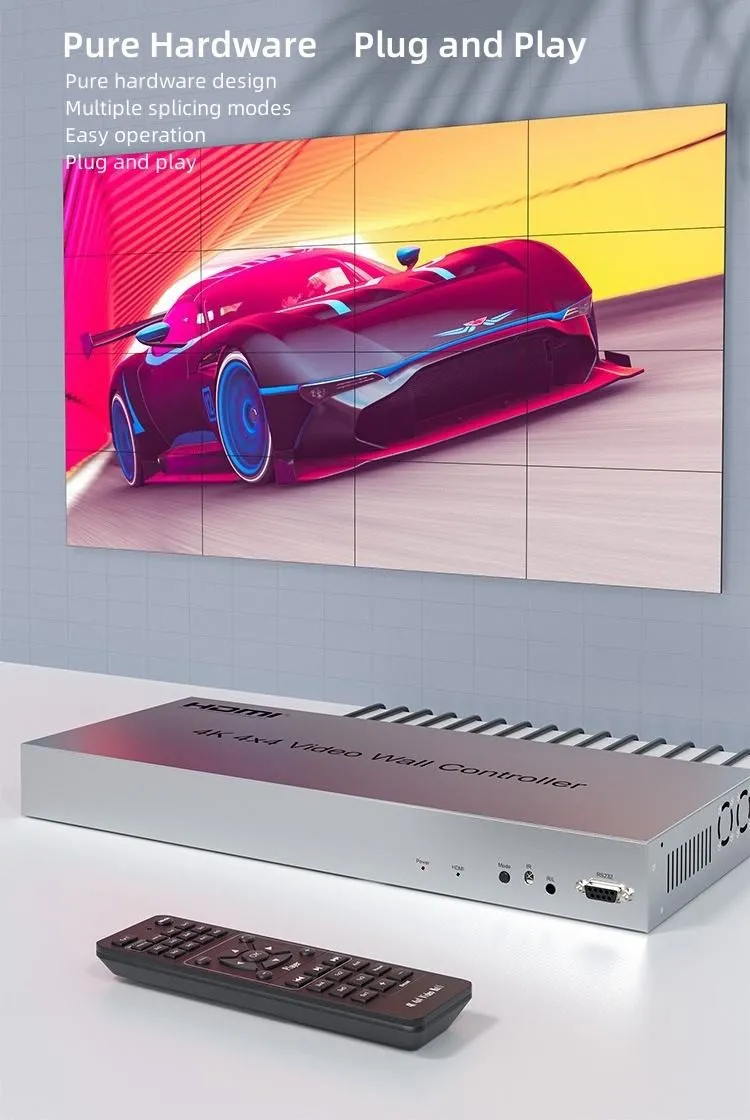

Plug-and-Play Operation
Requires no software, drivers, or complex configuration. Connect the HDMI source and displays to achieve instant functionality, minimizing installation labor costs and accelerating project completion for time-sensitive B2B deployments.
IR Remote Control
Includes infrared remote functionality for real-time operation and adjustments, providing convenient control in live environments while maintaining the simplicity procurement teams value in scalable AV solutions.
OEM/ODM Manufacturing Capabilities
AOST operates as a specialized manufacturer with over 10 years of hands-on experience producing HDMI Switchers, HDMI Splitters, HDMI Extenders, HDMI Converters, HDMI Video Wall Controllers, and HDMI Media Players. Our [Location]-based production facilities enforce strict quality control protocols at every stage-from component sourcing through final testing-to guarantee consistent reliability and regulatory compliance. We offer full white-label and custom packaging services, enabling procurement teams to align products precisely with brand standards and supply chain requirements while securing competitive pricing and dependable lead times.
FAQ
Q: What resolutions does the 4X4 Video Wall Controller support?
A: The unit accepts HDMI input resolutions up to 3840×2160 at 30Hz and provides 1920×1080 at 60Hz output per port, ensuring full compatibility with current 4K sources and standard Full HD display arrays commonly used in commercial video wall installations.
Q:Is the controller suitable for plug-and-play deployment in professional environments?
A:Yes. The design supports immediate operation with no additional software or programming required. Connect the source and up to 16 displays to establish a functional video mosaic within minutes, reducing technical risk and installation costs for procurement-led projects.
Q:How flexible are the splicing modes for different installation layouts?
A:The controller provides multiple preset splicing modes, allowing straightforward adaptation to standard 4×4 or alternative configurations based on site-specific display arrangements and content requirements.
Q:What control methods are available for daily operation?
A:The unit includes built-in IR remote control for convenient, on-demand adjustments without physical access to the device, supporting efficient management in teaching venues, restaurants, stations, and similar high-traffic applications.
