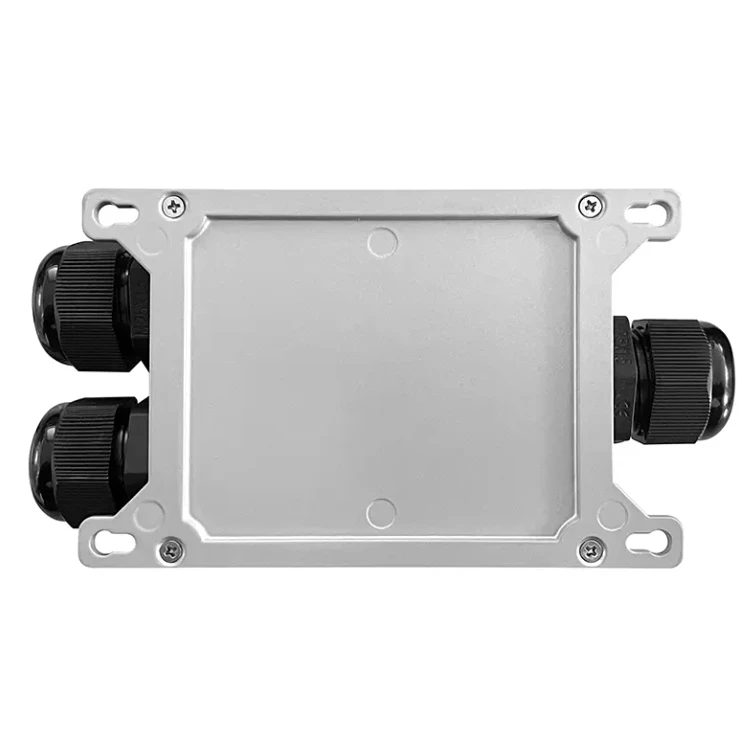

Gigabit IP67 Outdoor Waterproof PoE Extender – 1 PoE In, 2 PoE Out, 90W BT Output (Model: EX102G-BT)
The EX102G-BT delivers industrial-grade reliability with full Gigabit performance, IP67 protection, and flexible 802.3af/at/bt PoE functions.
Core Features & Business Benefits
1× Gigabit PoE Input + 2× Gigabit PoE Outputs
All ports auto-negotiate 10/100/1000Mbps. Extend both data and power to two devices simultaneously while maintaining full Gigabit backbone speed.
High-Power PoE Support
Input: IEEE 802.3af/at/bt up to 120W (or passive DC 37-57V).
Output: OUT1 up to 90W (BT), OUT2 up to 30W (af/at). Enables powering high-consumption PTZ cameras, access points, and edge devices without local power.
True Industrial Outdoor Design
Die-cast aluminum housing with IP67 rating and nylon waterproof cable glands (supports 4-8mm cables). Proven operation in -40°C to +80°C environments with 6kV surge protection.
PoE Dog Auto-Reset Function
Automatically detects and power-cycles unresponsive devices, significantly reducing field service visits and maintenance costs.
VLAN & Extender Modes
Flexible network configuration for security system segmentation and extended reach.
Technical Specifications
|
Parameter |
Specification |
|
Model |
EX102G-BT |
|
Product Name |
Gigabit IP67 Outdoor Waterproof PoE Extender |
|
Ports |
1× 10/100/1000Base-T PoE IN 2× 10/100/1000Base-T PoE OUT |
|
PoE Input |
IEEE 802.3af/at/bt, max 120W Passive DC 37-57V, max 120W |
|
PoE Output |
OUT1: IEEE 802.3af/at/bt, max 90W OUT2: IEEE 802.3af/at, max 30W |
|
PoE Pin Assignment |
BT: 1/2(+), 4/5(+), 3/6(-), 7/8(-) af/at: 1/2(+), 3/6(-) |
|
Bandwidth |
4Gbps |
|
Packet Forwarding Rate |
2.88Mpps |
|
MAC Address Table |
2K |
|
Buffer Memory |
2.5M |
|
Transmission Distance (PoE) |
10BASE-T: ≤250m (Cat5) 100BASE-TX: 150m 1000BASE-TX: 100m (Cat6) |
|
Waterproof Rating |
IP67 |
|
Material |
Aluminum die-casting body + Nylon waterproof glands |
|
Operating Temperature |
-40°C to +80°C, 5%–90% RH (non-condensing) |
|
Surge Protection |
6kV (8/20μs) |
|
Installation |
Desktop / Wall-mount |
|
Dimensions (L×W×H) |
150×77×43mm (device) / 160×85×47mm (packing) |
|
Weight |
Net: 0.27kg / Gross: 0.31kg |
|
Certifications |
CE-EMC EN55032, CE-LVD EN62368, FCC Part 15 Class B, RoHS |
|
Warranty |
1 year on whole device (accessories excluded) |
Product Application Fields
Gigabit IP67 Outdoor Waterproof PoE Extender for High-Power Outdoor Surveillance & Industrial Edge Devices
In outdoor security projects, procurement managers and engineers often face insufficient single-port PoE power, signal attenuation over long distances, and frequent device downtime in harsh weather. The EX102G-BT features 1 Gigabit PoE input and 2 Gigabit PoE outputs (OUT1 up to 90W BT, OUT2 up to 30W), enabling simultaneous power and data delivery to two high-consumption PTZ cameras while maintaining full Gigabit backbone speed-no local power required. Its IP67 die-cast aluminum housing, -40°C to +80°C wide-temperature range, and 6kV surge protection eliminate outdoor reliability concerns.
Gigabit IP67 Outdoor Waterproof PoE Extender for Outdoor Wi-Fi Access Point & Edge Device Power Extension
Traditional solutions force buyers to add extra power cabling or midspan injectors for high-power APs and edge devices over long runs, raising installation costs and maintenance frequency. This extender accepts 802.3af/at/bt input up to 120W and delivers high-power outputs to two devices while preserving full Gigabit performance. The PoE Dog auto-reset function detects and power-cycles unresponsive devices, significantly reducing field service visits.
Gigabit IP67 Outdoor Waterproof PoE Extender for Industrial IoT & Harsh Environment Network Segmentation
In factory perimeters, warehouses, and smart transportation applications, engineers confront wide-temperature extremes, waterproofing, surge risks, and the need for network segmentation. The EX102G-BT provides flexible VLAN and Extender modes for secure system isolation and extended reach, while its IP67 rating and nylon waterproof cable glands guarantee long-term outdoor reliability. To address selection and delivery concerns, we support small-batch sampling, OEM assembly, and one-on-one engineer customization, with our own factory delivering stable production capacity for annual bulk procurement and long-term supply contracts.
FAQ
Q: What is the maximum PoE power available to connected devices?
A:OUT1 delivers up to 90W (802.3bt), while OUT2 supports up to 30W (802.3at). Total output is subject to input power and cable length.
Q:Is the EX102G-BT suitable for extreme outdoor environments?
A: Yes. With IP67 rating, -40°C to +80°C operating range, and 6kV surge protection, it is engineered for harsh industrial and security installations.
Q: Does it support passive PoE input?
A: Yes. It accepts both active IEEE 802.3af/at/bt and passive DC 37-57V input up to 120W.
Q:Can I use it to power two high-power PTZ cameras?
A:Yes. One camera can utilize the 90W BT output while the second uses the 30W af/at output, provided sufficient input power is supplied.
Q:What cable types and diameters are supported?
A:Standard Cat5e/Cat6 network cables. Waterproof glands accommodate cable diameters of 4-8mm.
