You need proven HDMI distribution gear that hits exact specs, arrives on time, and stays within budget-especially when scaling up commercial AV projects. This factory-direct 16-way splitter solves those issues by delivering reliable 8K performance at competitive volume pricing with short, dependable lead times.
Core Features and Business Benefits
8K/60Hz resolution support across 16 outputs: Split one HDMI source to as many as 16 monitors or projectors without quality loss. Ideal for conference halls, control rooms, and digital signage where multiple high-resolution displays run simultaneously.
HDR and 3D video compatibility: Handles vibrant colors and immersive formats straight out of the box, so your end customers get consistent premium visuals without extra converters or troubleshooting.

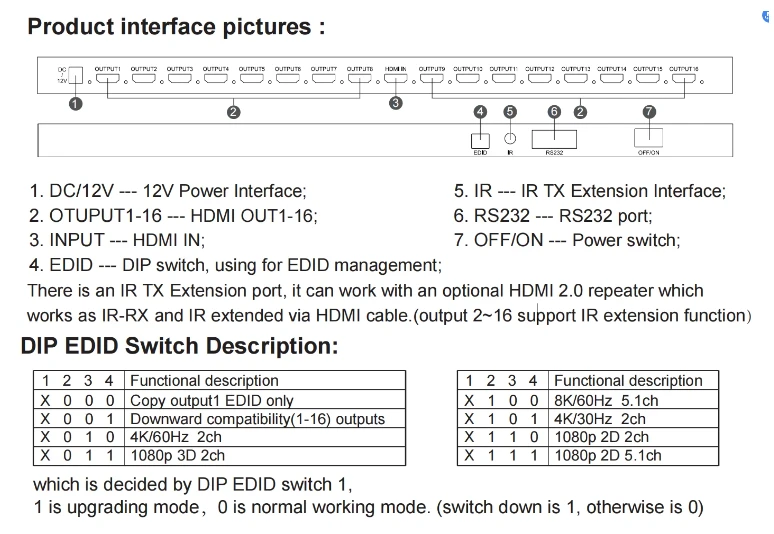

EDID management with eight selectable modes: Match the splitter to any combination of displays quickly. This cuts installation time and eliminates compatibility headaches on mixed-monitor setups.
Built-in IR extension for source control: Pair with our HDMI 2.0 repeater (IR-RX) to let users control the source device remotely from any display location-no extra IR cabling required.
Signal regeneration for longer runs: Place the splitter at the end of extended HDMI cables to refresh the signal. Supports stable 8K/60Hz transmission up to the full rated cable length.
Output downscaling: Automatically adjusts higher-resolution input to match lower-resolution displays. Gives you flexibility when mixing old and new screens in one project.
CEC support on output 1 and full audio passthrough: Passes DTS-HD, Dolby TrueHD, and other high-end audio formats while enabling basic device control commands.
Technical Specifications
|
Parameter |
Specification |
|
HDMI Resolution |
up to 8K/60Hz |
|
Video Color Format |
8/10/12-bit Deep Color |
|
Audio Formats Supported |
DTS-HD / Dolby TrueHD / DTS / Dolby AC3 / DSD |
|
Maximum Baud Rate |
40 Gbps |
|
Input Cable Distance (8K/60Hz) |
≤5 m (HDMI 2.1 standard cable) |
|
Output Cable Distance (8K/60Hz) |
≤5 m (HDMI 2.1 standard cable) |
|
Maximum Working Current |
1.45 A |
|
Power Adapter |
Input: AC 100-240 V (50/60 Hz); Output: DC 12 V / 2 A |
|
Operating Temperature |
-15 °C to +55 °C |
|
Dimensions (L × W × H) |
482 × 105 × 25 mm |
|
Weight |
1.54 kg |
OEM/ODM Supply Chain Capabilities
We operate a dedicated HDMI products manufacturing facility with full in-house production lines for splitters, matrices, and extenders. Every unit goes through automated testing for signal integrity, thermal stability, and long-term reliability before leaving the factory. Our OEM/ODM process supports custom EDID profiles, private labeling, and packaging adjustments to match your branding or project specs. With established component suppliers and streamlined assembly, we maintain consistent quality across orders from small pilots to container volumes while keeping lead times predictable and competitive.
Frequently Asked Questions (FAQ)
Q: How many EDID modes are available and why does this matter for procurement?
A: Eight factory-preset EDID modes let you match the splitter to different display combinations on site. This reduces the need for multiple SKUs in your inventory and simplifies bulk purchasing decisions.
Q: Can the splitter regenerate the signal after long cable runs?
A: Yes. It actively regenerates the HDMI signal, supporting stable 8K/60Hz performance even when placed at the end of a 5 m HDMI 2.1 cable run.
Q: Does it support HDR and advanced audio formats for modern AV systems?
A: It fully supports HDR, 3D, and high-resolution audio including Dolby True HD and DTS-HD, so the unit works with current 8K sources and displays without additional equipment.
Q: Is remote source control possible?
A: Yes, through the built-in IR extension. When paired with our HDMI repeater that includes an IR receiver, end users can control the source device from any connected display.
Q: What is the maximum current draw and power requirement?
A: The splitter operates at a maximum of 1.45 A with a standard DC 12 V / 2 A adapter, making it easy to integrate into existing rack or power infrastructure.
