Introduction
This product supports KVM and USB disk. It can reverse charge the Type-C input
port, or directly connect to the Type-C In1/In2 signal source, mouse and keyboard (KVM)
without PD power supply, which is convenient for users.
Features
* Supports output resolution up to 4K@60Hz, HDR-10;
* Supports a maximum PD100W(5A/20V) fast charge, and can charge two devices at the same time;
* Supports 2 ways type-c signal sources input, the two signal sources share a set of mouse, keyboard and display;
* Supports USB3.0 interface (can be connected to USB disk/hard disk/mouse/ keyboard and USB peripherals;
* Supports some high-end mobile phones and tablets wired screen projection and conversion functions, support 4K 60Hz output.

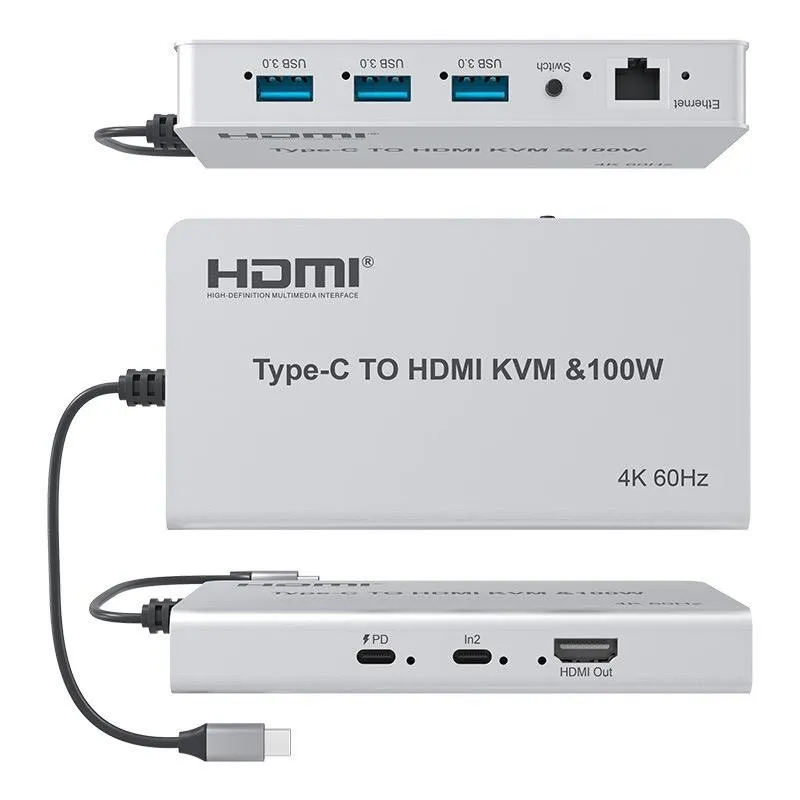

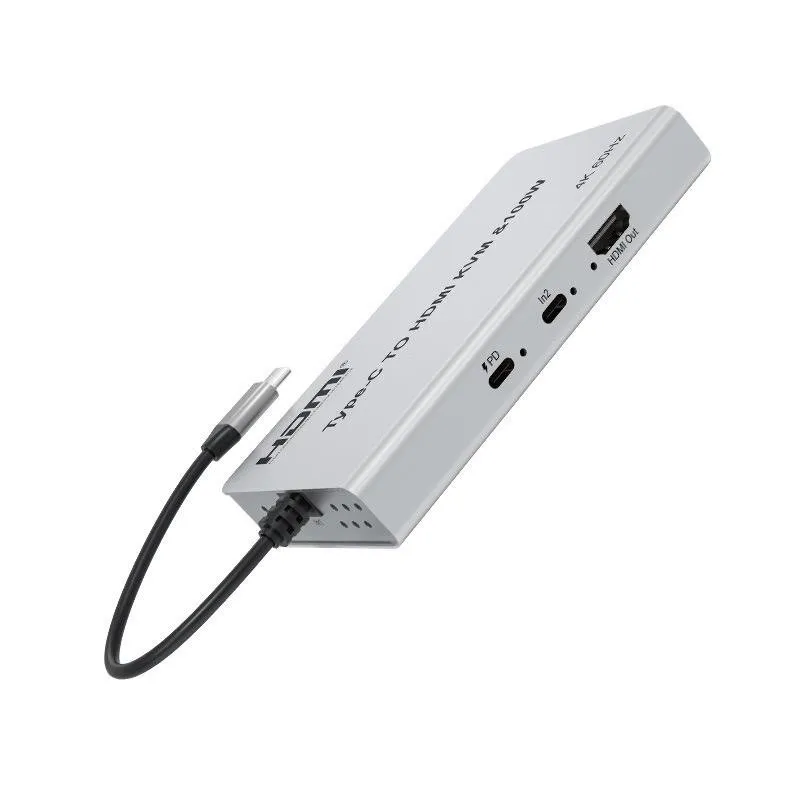

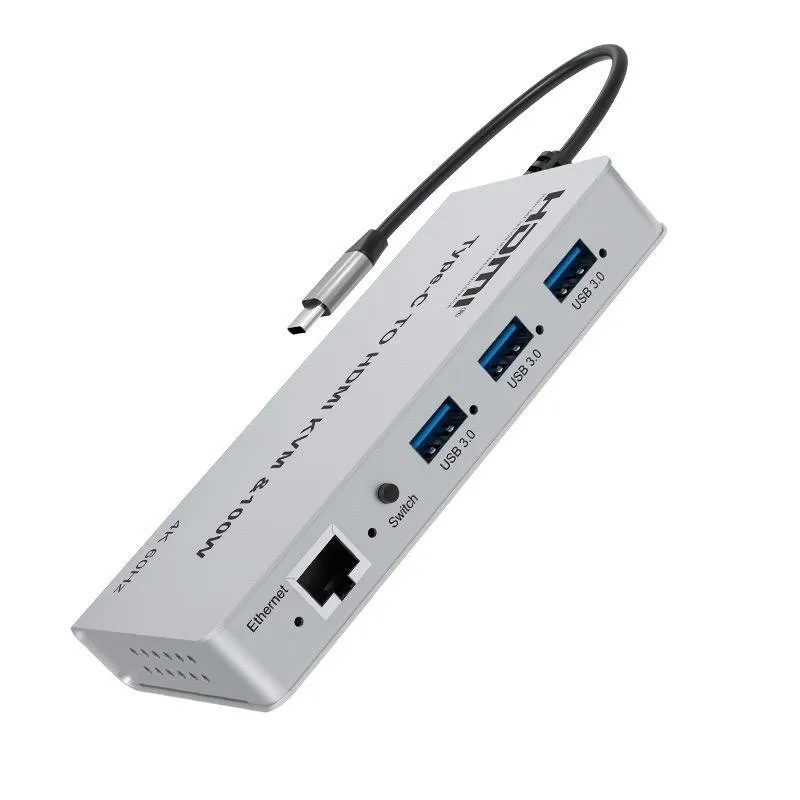

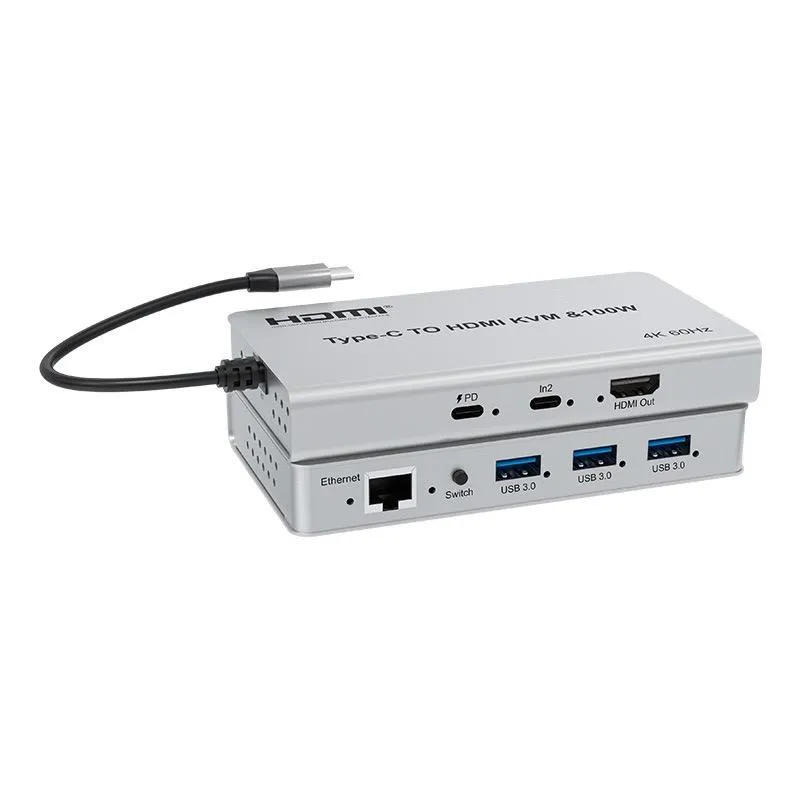

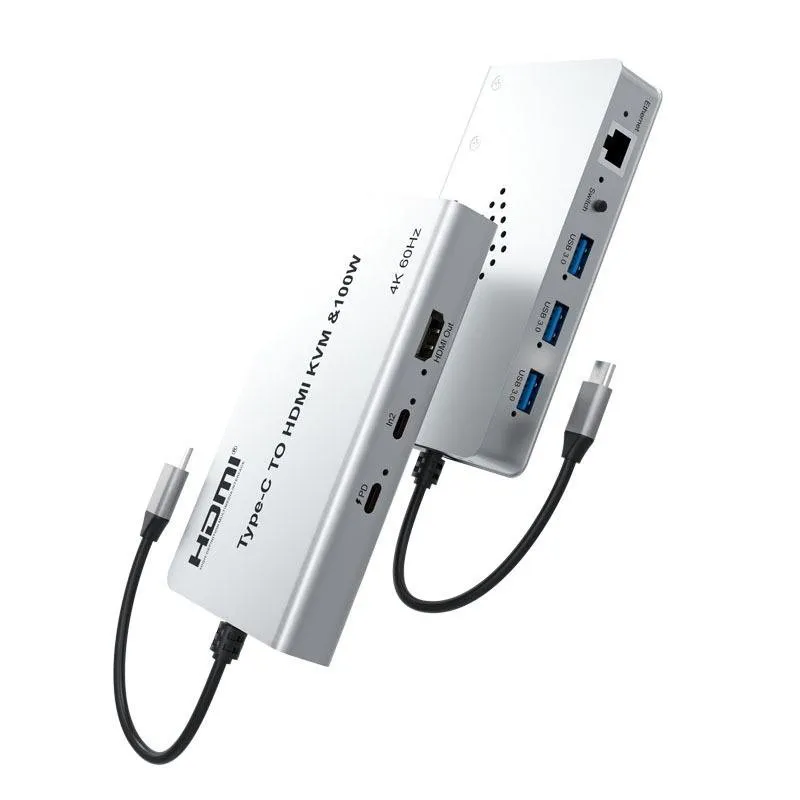

Physical interface diagram
| HDMI Resolution | 4K@60Hz (Backward Compatible) |
| Video Format | Deep Color (10-bit), RGB/YUV (4:4:4), YUV (4:2:2), YUV (4:2:0) |
| USB Max Bandwidth | 5Gbps |
| Ethernet | Gigabit Ethernet Port (10/100/1000 Mbps) |
| Switch | Type-C Signal Switch Button |
| USB 3.0 | USB 3.0 Port |
Physical interface diagram:
| Max baud rate | 500MB/s |
| Input Type-C cable distance | ≤1M (24P full-function TYPE-C cable) |
| Output HDMI cable distance | ≤3M |
| Operating Temperature range | -15 ~ +45℃ |
| Operating Humidity range | 5 ~ 90%RH (No Condensation) |
| Dimension (L × W × H) | 140 × 75 × 20 mm |
| Cable length | 195 mm |
| Weight | 356 g |
PD power adapter specifications: Input: AC(50HZ, 60HZ)100V-240V; Output 5V/9V/12V/15V/20V.
PD adapter charging power intelligent distribution under different specifications: (Note: Type-C cable should support fast charge protocol, then the PD3.0 power source can charge)
1. PD100W: Maximum output wattage of single Type-C port(port1 or port2) 80W(20V/4A);When Type-C port1 and port2 are all connected, the maximum output wattage of port1 is 60W, and themaximum output wattage of port2 is 20W.
2. Ensure that the power supply to the main device is normal, when the wattage of the PD adapter is less than 75W, the maximum output wattage of port1 is 55W, and port2 is not charged.
Note: The signal of type-c is DP1.4, the output reach to 4k@60hz; when it is DP1.2 signal,the output can only display 4k@30hz.
